high-efficiency sheet metal straightening machine and uncoiler for power press

FOB Reference Price:Get Latest Price
$8,064.51 - $16,129.03 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Straightener Feeder & Uncoiler
Use:
Sheet
Place of Origin:
Guangdong, China
Brand Name:
SHENZHEN LIHAO MACHINE
Model Number:
TGL-200H,TGL-300H ,...TGL-1000H
Certification:
CE ISO
include:
uncoiler function,straightener functioin
uncoiler:
uncoil metal strip coil
straightener:
straighten metal strip
certificate:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
In wooden case
Port
SHENZHEN
Lead Time :
20 working days
Product Description

Product Application

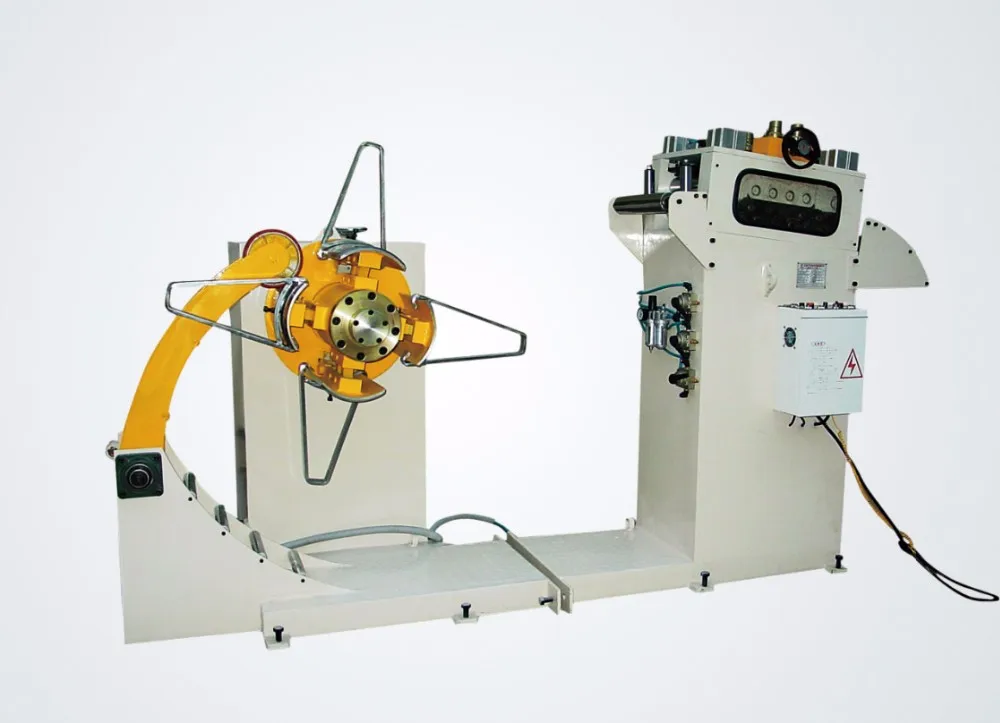

high-efficiency sheet metal straightening machine and uncoiler for power press

Metal coil processing machine,for uncoiling,straightening metal strip material.Industrial equipment,automatic tool.

Model
Coil width
(mm)
Coil weight
(kg)
Material thickness (mm)
Coil inner diameter (mm)
Coil outer diameter (mm)
Straightening roller quantity
Motor (kw/4p)
 Slacking style(for choosing)
TGL-300
300
2000
0.5-3.2
450-530
1200
Ø60×7
1.5
Manual /hydraulic
TGL-400
400
3000
0.5-3.2
450-530
1200
Ø60×7
2.2
Manual /hydraulic
TGL-500
500
3000
0.5-3.2
450-530
1200
Ø60×7
2.2
Manual /hydraulic
TGL-600
600
3000
0.5-3.2
450-530
1200
Ø60×7
2.2
Manual /hydraulic
TGL-700
700
4500
0.5-3.2
450-530
1200
Ø60×7
3.7
Manual /hydraulic
TGL-800
800
5000
0.5-3.2
450-530
1200
Ø60×7
3.7
Manual /hydraulic

Main Features

1) Uncoiler and straightener two in one style improves factory usable space.

2) Straightening adopts balance adjusting equipment and suitable for processing higher precision products.

3) Roller:adopts solid bearing steel and hard chrome plating treatment.

Certifications
Detailed Images

Machine Parts

Name: Control box

Controlling machine's moving action by control box.



Main Features

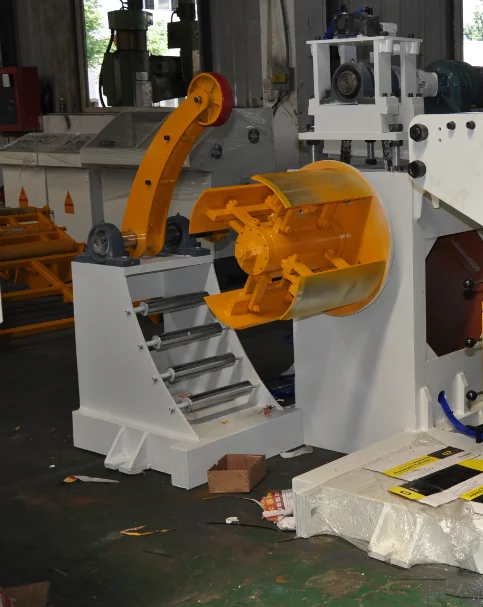

Name: uncoiler part

Loading material coil on the mandrel ,ready for uncoiling

Machine Parts

Name: Straightening part

After straightening part ,material strip can get a good performacne ,ready for stamping work.
