High precision sheet metal uncoiler flattening machine and nc feeder

FOB Reference Price:Get Latest Price
$20,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NCMF-400 NCMF-500 NCMF-600
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Warranty:
1 year
Machine Type:
3 in 1
Usage:
Metal sheet strip coil
Function:
Feed metal strip for stamping for cutting
Motor:
Yaskawa servo motor
PLC:
Mitsubishi
Touch screen:
Weinview
Expand power:
Hydraulic
Max. feeding speed:
20m/min
Feeding precision:
<±0.2mm
Feature1:
Double screen
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet.
Port
SHENZHEN
Product Description

Product Application

1. This big machine combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1.
2. It can decoil suitable metal sheet coil, then straighten the metal sheet, then feed the metal sheet to press machine automatically, for automatic stamping processing.

 Main Features


1. Flexible operation:
All the functions of the feeder are centered on the PLC and a hand-held knob. The operator can implement all the motion functions of the equipment at one location. This can save time.
2. High efficiency, strong security:
To maximize the use of mechanical action instead of manual operation.Reduce unnecessary auxiliary time, improve work efficiency. Powerful auxiliary function, so that the operator can stay away from the uncoiler。
3. Easy to operate:
According to user needs, you can switch between the press or the device to control. Improve the equipment to adapt to the scope for the customer to save costs.
4. Area is reasonable:
Li Hao NCMF series is the powerful also have the most reasonable size in the industry, we can save space occupancy costs for the customers.
5. Control system compatibility:
NCMF series using a full set of Japan's Mitsubishi control system, and the standard system at home and abroad compatible, users do not need to worry about data conversion and other issues can be directly used to operate.
6. The design is harmonious and reasonable:
Li Hao’s NCMF series is the first on the industry to introduce industrial design into product. Li Hao and the most well-known industrial design cooperation, while ensuring the basic performance of equipment at the same time, maximize the visibility of the equipment to improve the operational comfort.
Basic parameters
Name
Uncoiler, straightener, NC servo roll feeder, 3 in 1
(including hydraulic expansion, coil car)
Model
NCMF-400B
NCMF-600B
NCMF-800B
NCMF-1000B
Width of the material
50mm~400mm
50mm~600mm
50mm~800mm
50mm~1000mm
Thickness of the material
0.4mm~3.2mm
Straightening capacity (σs≤250MPa)
400×1.0mm
400×1.2mm
400×1.6mm
360×2.0mm
300×2.3mm
230×2.5mm
150×2.8mm
110×3.2mm

600×1.0mm
600×1.2mm
400×1.6mm
360×2.0mm
300×2.3mm
230×2.5mm
150×2.8mm
110×3.2mm


800×1.0mm
600×1.2mm
400×1.6mm
360×2.0mm
300×2.3mm
230×2.5mm
150×2.8mm
110×3.2mm


1000×0.8mm
800×1.0mm
600×1.2mm
400×1.6mm
360×2.0mm
300×2.3mm
230×2.5mm
150×2.8mm
110×3.2mm


Coil inside diameter
Φ460mm~Φ530mm
Max.coil outside diameter
Φ1400mm
Max.coil weight
5000KG
7000KG
Straightening roll diameter
Φ64mm×9(up 5/down 4)
Material of straightening roll
GCr15(HRC58-62)
Feeding roll diameter
Φ84mm
Decoiler power
2.2Kw
3.7Kw
Straightening power
2.9Kw
4.4Kw
5.5Kw
Feeding speed
0~20m/min
Feeding precision
<±0.2mm
Other configuration
Straightening adjustment type
Eccentric shaft adjust by worm and gear
Load material type
coil car
Feed discharging line adjustment method
Electric
Press material for decoiling part
By pneumatic
Feeding guide arc drivemode
By pneumatic
Block arm drive mode
Manual
Front block arm opening and closing method
Pneumatic
Feeding device movement mode
Two-way screw hands
Operation control mode
Main control cabinet + action unit remote control switch
Tail of material detector
Exist
Purchased parts brand
Main bearing
HRB,ZWZ
Servo motor
Japan YASKAWA(SGMGH)
Man-machine interface
Taiwan WEINVIEW(Colored)
Common motor
Taiwan Wanxin
Frequency changer
Taiwan DELTA
Pneumatic unit
Taiwan Airtac
PLC
Japan Mitsubishi
Relay
Japan Omron
Hydraulic fittings
Guangdong Lishiyuan
Other technical data
Pneumatic pressure
0.5Mpa
Hydraulic pressure
7Mpa
voltage
3phase 380V
Feeding line height
1050mm-1250mm
Input material type
From down to up
Standard direction
From left to right, or from right to left.
Equipment length
≈4.5m
Certifications
Detailed Images

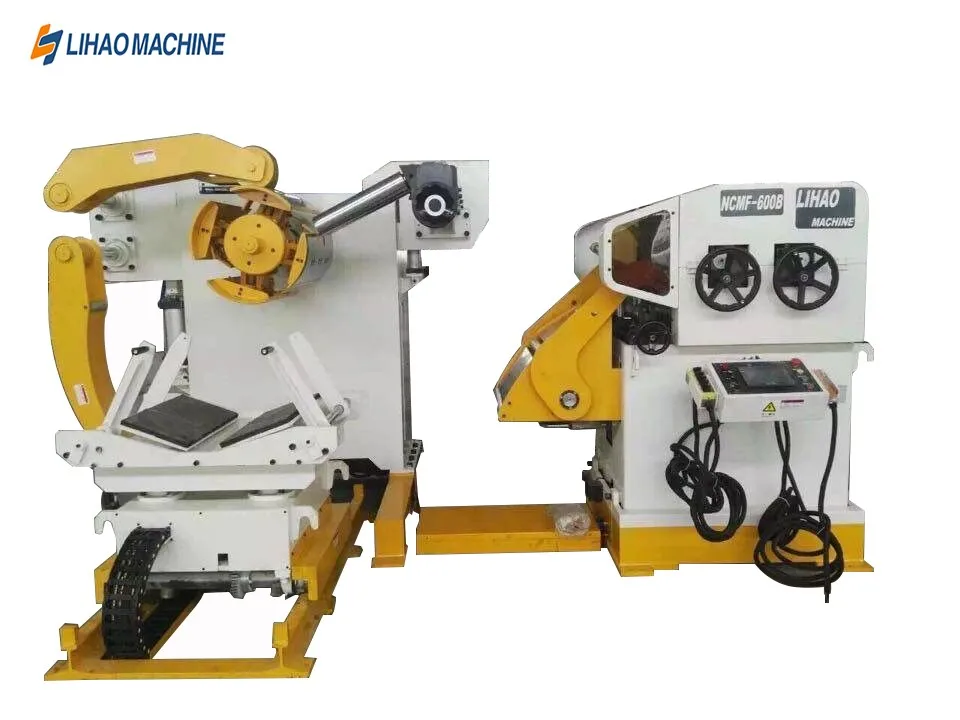

Decoiler straightener feeder, 3 in 1

Decoiler/uncoiler, straightener, NC servo roll feeder, as 3 in 1 feeder.
Saving space in work shop.
Full automatic feeding.

Mandrel of uncoiler

Four pieces of plates.
Each plate is fixed by screws very well.
Cantilever type.

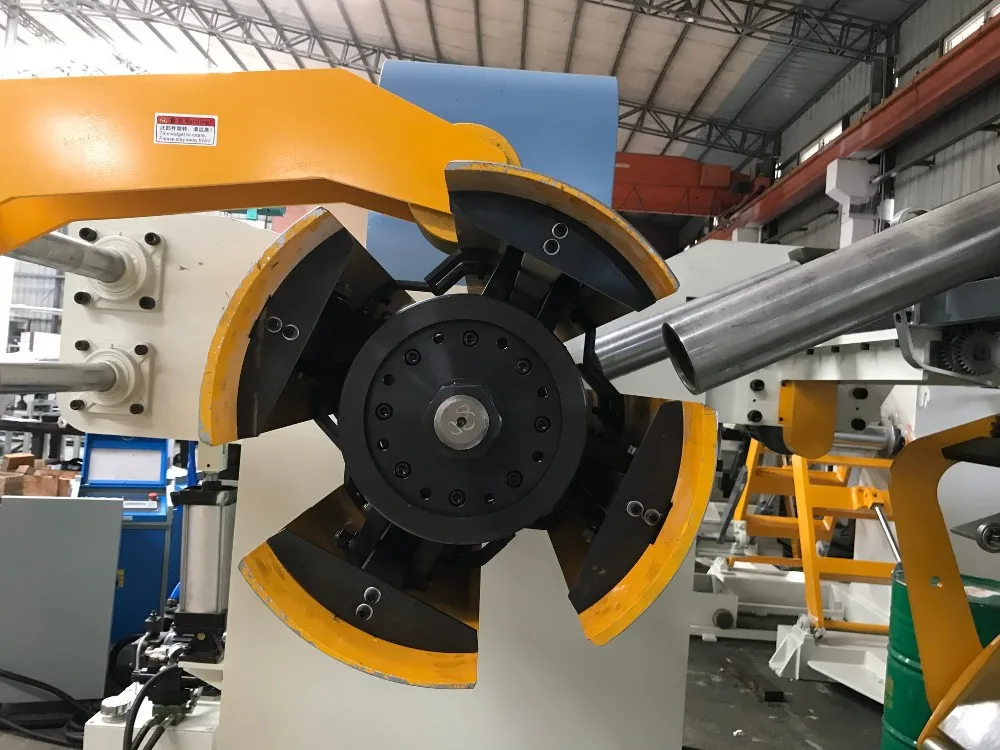

Round mandrel of uncoiler

Automatic expansion, by hydraulic cylinder drive.

Full round, for better loading.

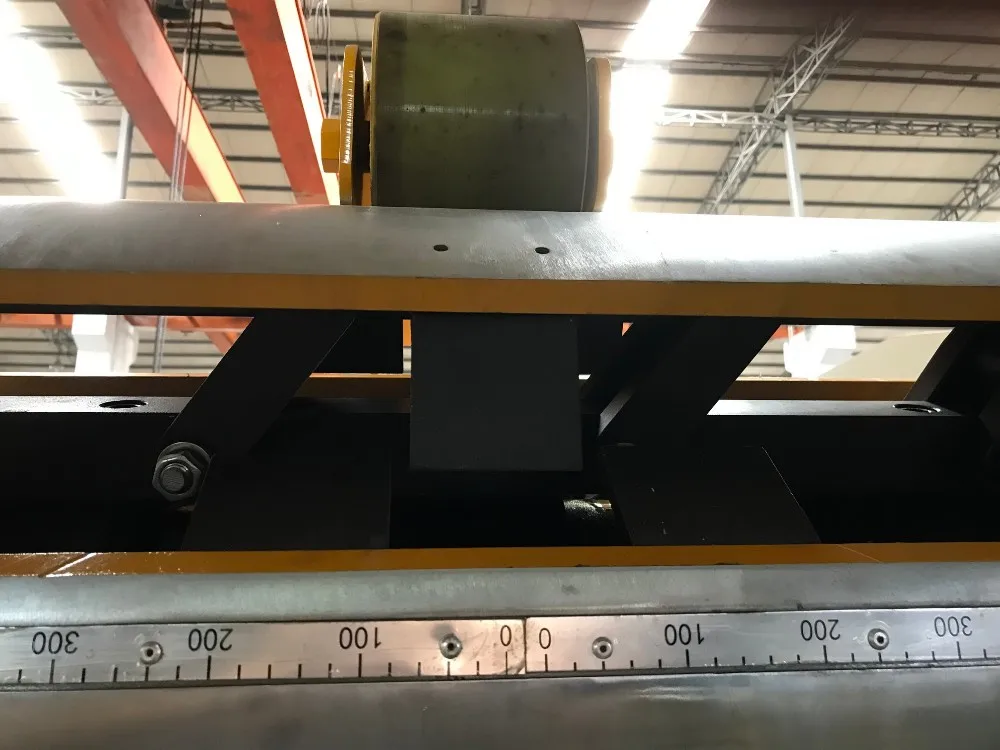

Ruler at plate of mandrel

It can indicate width of coil material.

Ruler at plate of mandrel

..., 400, 300, 200, 100, 0 | 0, 100, 200, 300, 400, ...
User can put coil material at center line position of this machine very easiliy.

Arm shape pressing device.

Drived by pneumatic cylinder or hydraulic cylinder.
Coil material will not become loosed.

Retainers of uncoiler

They can keep coil material at center line position.
Easy to use.

Motor for hydraulic pump.

Powerful AC motor make sure of hydraulic pressure.
Cooling system is optional.

Motor for uncoiler

Powerful AC motor is adopted.
Cover is adopted to protect the motor.

Hydraulic cylinder for uncoiler

Hydraulic cylinder drives for automatic expansion, for mandrel of uncoiler.
Cover is adopted to protect it.

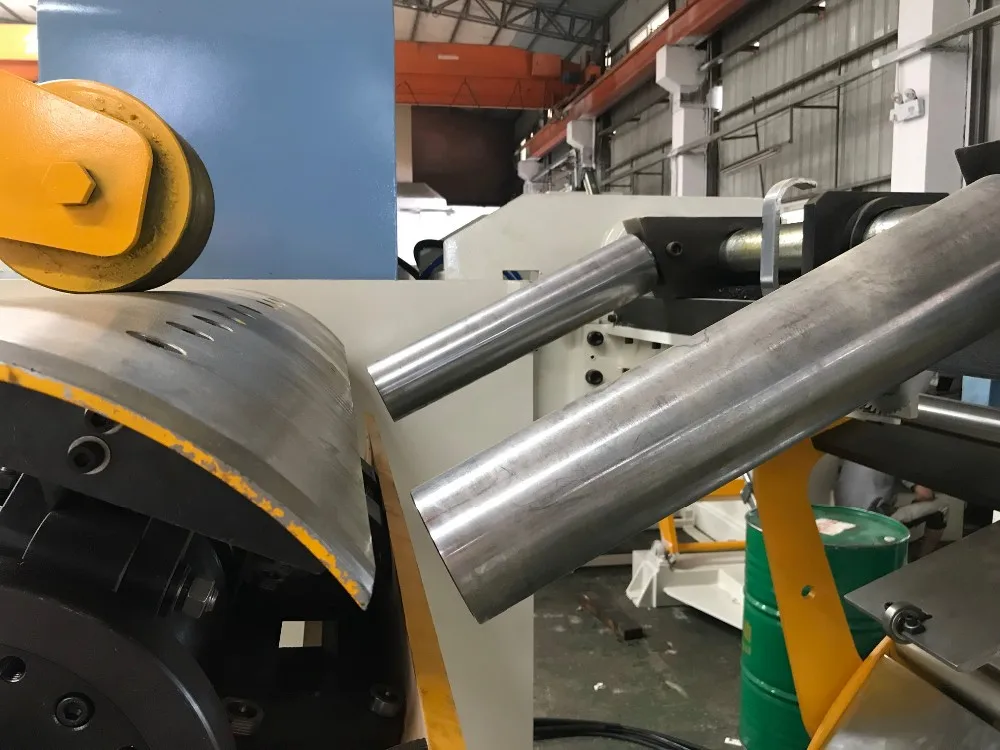

Guiding device for straigntener and feeder

While uncoiler decoil coil material, so material can get into entrance of feeder easily.

Entrance of straightener and feeder

Guiding device, let material at center line position.
Good design, safe and easy to use.

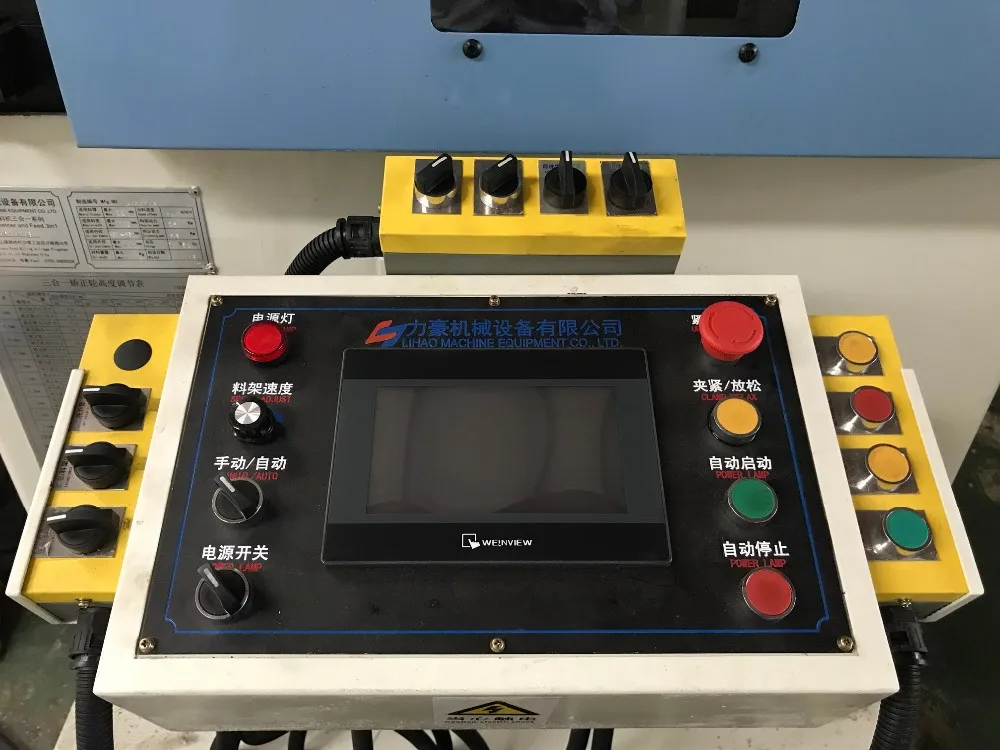

HMI controller

Touch screen and buttons.
User touch numbers and input feeding length numbers.
User touch order menu for the machine.

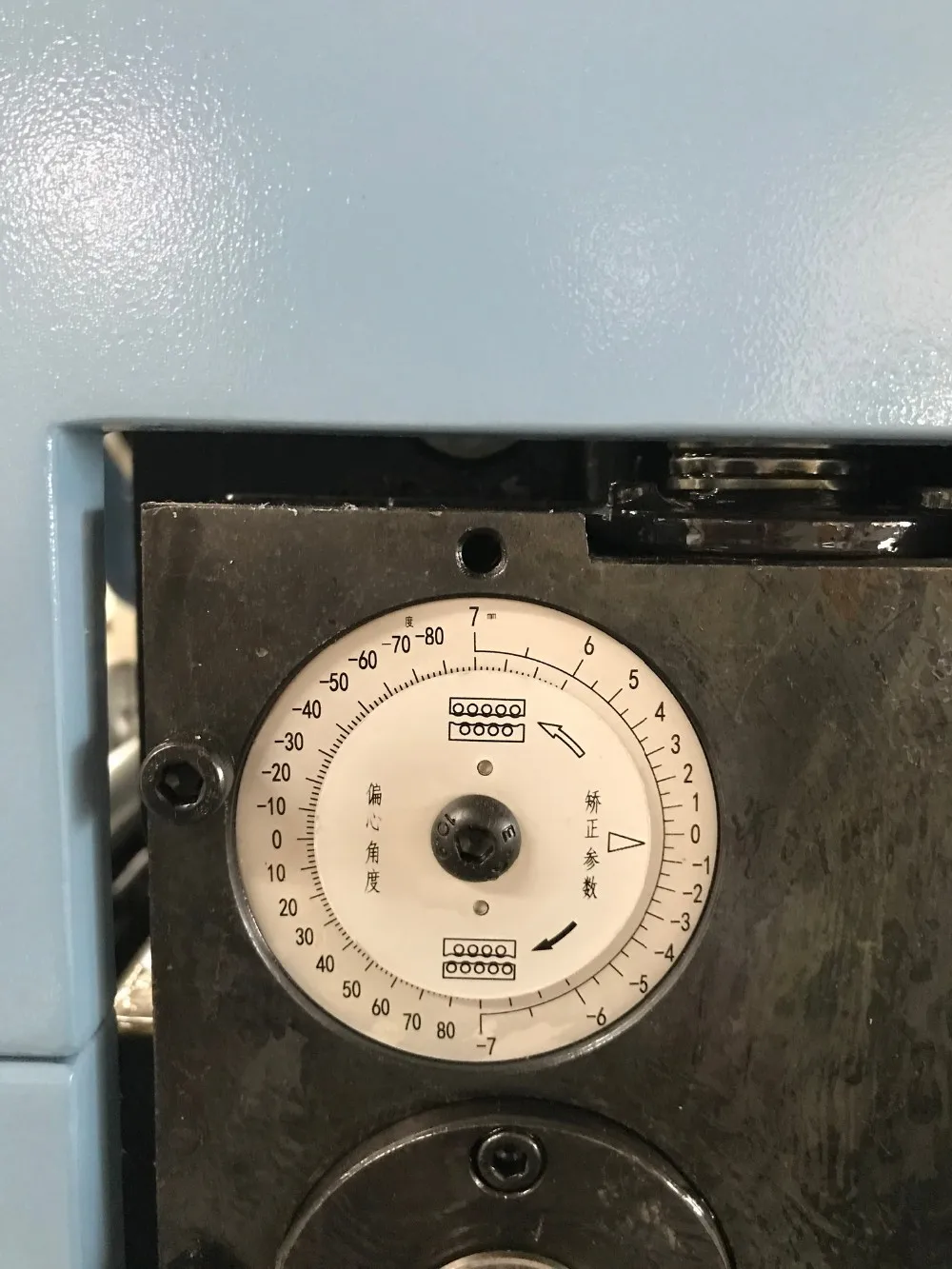

Dial gauge for straightener

Straightener has upper staightening rollers and lower straightening rollers.
As per various thickness of coil material, user need to adjust distance between upper rollers and lower rollers.

With the dial gauge, user can adjsut distance easily.

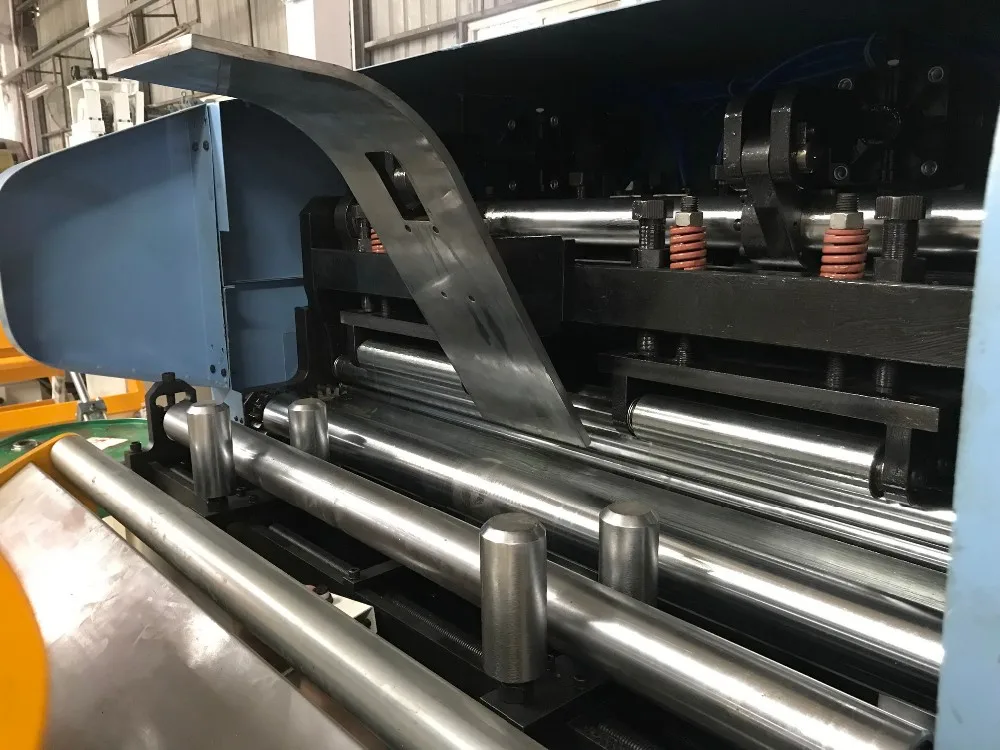

Gear set of straightener and feeder

Precise gear set is adopted, for high speed and high precision feeding.

Discharge exit of feeder

Rollers, limiting stopper, etc, are adopted for straight feeding also.
