2 in 1 metal sheet straightening uncoiling machine for press

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
CL-200 CL-250 CL-300
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Uncoiling Machine
Use:
Sheet
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
Voltage:
220V/380V
Power(W):
0
Dimension(L*W*H):
0*0*0
Weight:
0T
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field maintenance and repair service, Video technical support
include:
uncoiler function,straightener function
uncoiler:
uncoil metal strip coil
straightener:
straighten metal strip
Straightening Speed:
15m/min
Model:
CL
Material width:
150-300mm
Material thickness:
0.4-2.2mm
Coil O.D.:
800mm
Coil weight:
350-500kg
Feature:
Easy Operate
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
In wooden case
Port
SHENZHEN
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 20 To be negotiated
Product Description

Product Application

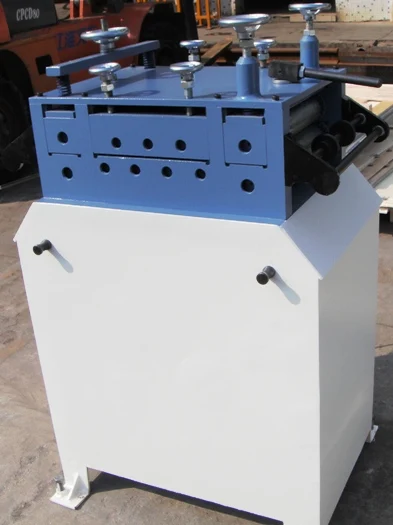

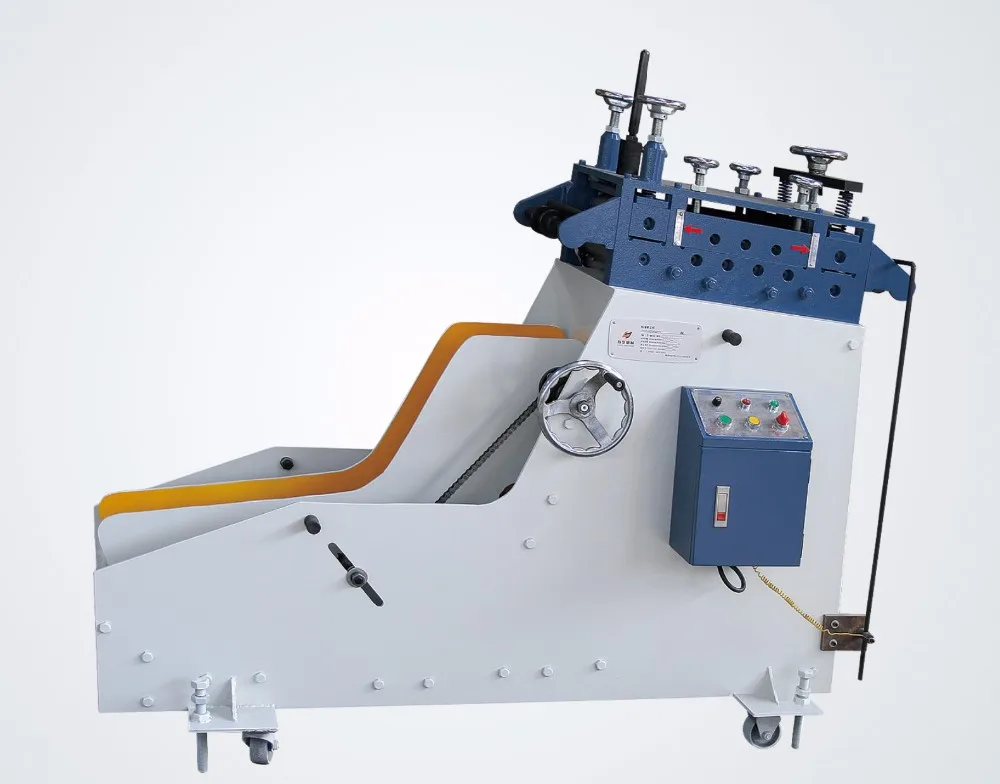

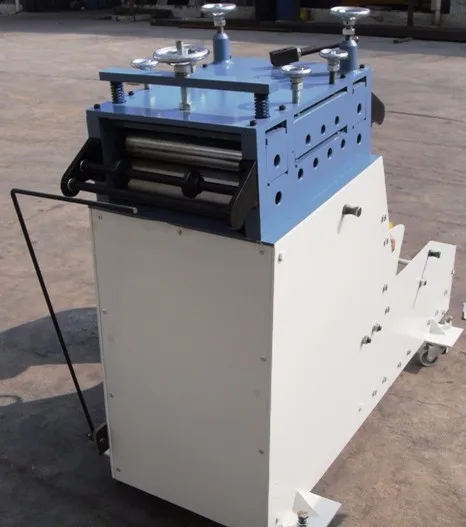

cradle style Feeding Uncoiler and straightener, 2 in 1, model CL

This machine is with function uncoiling and straighteneing,it can work with feeder machine and press machine for automatic production.

Main Features

1. Material decoiler and straightener function together in one structure ,does not take up too much space.
2. Suitable for various of metal coils uncoiling and straightening .
3. It can adopt variable speed device , to control the discharge speed.
4. The material rack and straightener are integrated, chain drive, chrome plated roller, special endless speed change device controls the discharging speed, with strong durability.
5. The uncoiling adopts splint on both sides, driven by the feeding roller, which is pulled by leveling part to control the speed.
6. Leveling roller adopts chromium steel 40CR,after conditioning ,high frequency quenching ,hard chromium plating. Surface hardness HRC60 degree,chrome plating thickness unilateral 0.05mm,high hardness, strong durability.
7. Leveling adjustment adopts four independent fine-tuning, which is controlled by scale, simple and practical.

8. Use L type iron frame induction frame induction,Mainly suitable for the material is lighter and smaller, the surface requirements are not high stamping production,It is often used with air feeder, with an economical punching automatic production line.

Parameter
Model
CL-150
CL-200
CL-250
CL-300
Max thickness
150mm
200mm
200mm
300mm
Thickness
0.4-2.2mm
Outer diameter
800mm
Weight
350kg
400kg
500kg
500kg
Speed
15m/min
Motor
1/2HP/4P
1HP/4P
1HP/4P
1HP/4P
Detailed Images

Machine Parts

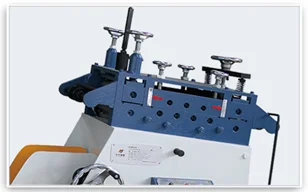

Name: Rack section

Brand: Lihao

Original: China


Machine Parts

Name: Electric control box
Brand: Lihao
Original: China
