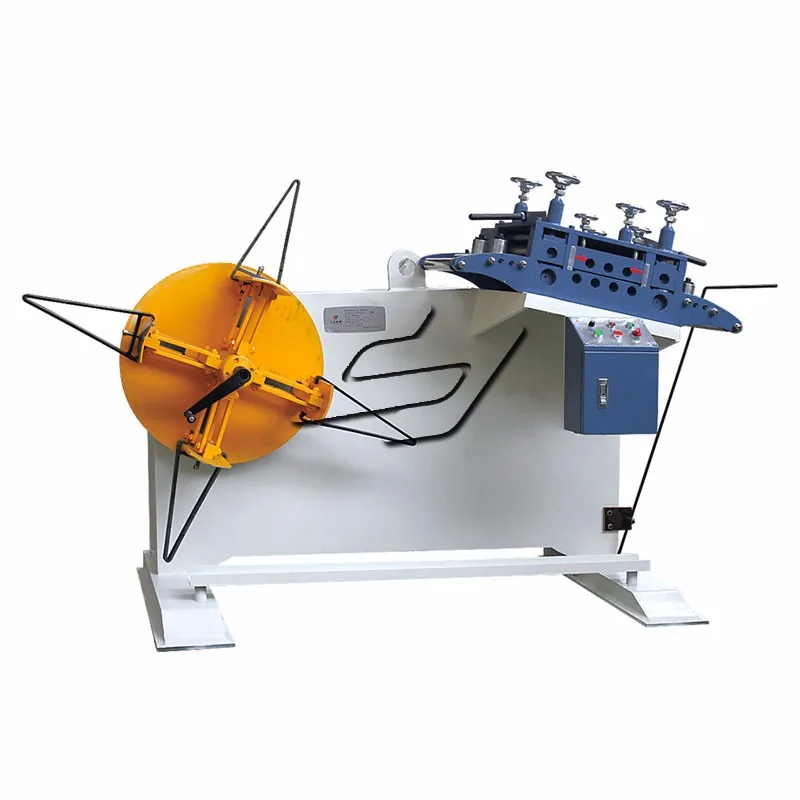

2 in 1 heavy rack and leveling machine for metal sheet stainless steel

FOB Reference Price:Get Latest Price
$1,800.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GO-200 GO-300 GO-400
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Decoiler and Straightener
Use:
metal sheet strip coil
Place of Origin:
China
Brand Name:
LIHAO
Voltage:
220V, 380V, 415V, 3 Phase, 50 Hz
Power(W):
1kw

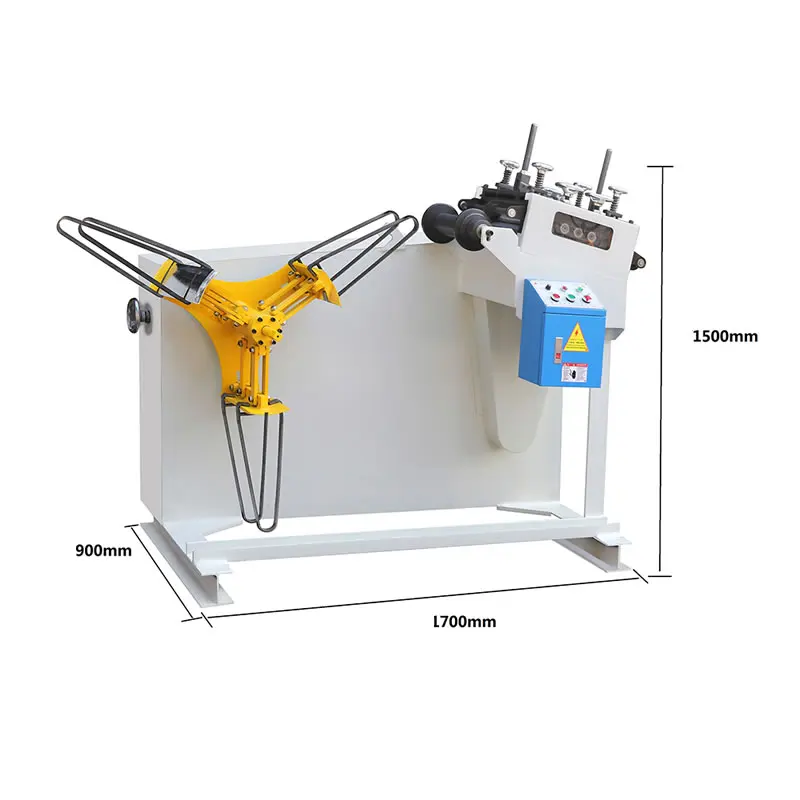

Dimension(L*W*H):
1880 x 980 x 1520mm
Weight:
600KG
Certification:
CE certificate
Warranty:
1year
After-sales Service Provided:
Video technical support, Online support, Engineers available to service machinery overseas
Usage:
metal sheet strip coil
uncoiler/decoiler:
decoil metal strip coil
straightener:
flatten metal strip
function:
feed metal strip to press machine
Max.material width:
1000mm
Max.material thickness:
2.5mm
expansion type:
manual
uncoiler part:
motorless
straightener part:
motorsied
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 To be negotiated





Uncoiler & Leveler 2 in 1

Description :

Feature

1.    Integrated with uncoiler and straightener, save volume, suitable for board processing. Automatically adjust feeding time according to output speed.

2.    All rolls are made of bearing steel, have all been quenched, hard-chrome plated and grinded with mim HRC60.

3.    Use Japanese electromagnetic contact and electric parts, long service life .

4.    A stepless variable speed control is used normal and high speed operation, control by modern frequency converters, keep pace with straightening, stable feeding.

5.    Leveler inclines appropriately to reduce feeding loop distance.

6.    Constructed with highly rigid structure and designed with a powerful motorized feeder.

Specification :

Type

GO-150

GO-200

GO-300

GO-400

GO-500

Max.width

150mm

200mm

300mm

400mm

500mm

Thickness

0.4-2.5mm

Coil.I.Dia

450-530mm

Coil.O.Dia

1200mm

Max.weight

500kg

800kg

1000kg

1500kg

2000kg

Power

1/2HP

1HP

2HP

2HP

3HP



Thickness

Material Width



GO-150

GO-200

GO-300

GO-400

G0-500

1.5mm

150mm

200mm

300mm

400mm

500mm

2.0mm

150mm

200mm

300mm

400mm

40mm

2.5mm

120mm

160mm

240mm

320mm

250mm


FAQ

How To Select Straightener Feeder & Uncoiler 2 in 1 Machine

-What's your material?

-Max. width of your strip in coil form ...mm

-Max. Min thickness of your strip ...mm

-Max. weight of your strip in coil form...kg

-What's the inner diameter of your coil...mm

-What's the outer diameter of your coil...mm
