High quality customization uncoiler straightener nc servo feeder for stamping machine

FOB Reference Price:Get Latest Price
$20,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NCMF-400B NCMF-600B NCMF-800B
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Video technical support
Warranty:
1 year
Machine Type:
uncoiler ,straightener and feeder
Usage:
Metal sheet strip coil
Function:
Feed metal strip for stamping for cutting
Motor:
Yaskawa servo motor
PLC:
Mitsubishi
Touch screen:
Weinview
Expand power:
Hydraulic
Max. feeding speed:
20m/min
Feeding precision:
<±0.2mm
Feature1:
Double screen
Feature2:
Easy operation
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Product Description

 Main Features:

            1.  Flexible operation mode
            2.  High efficiency and safety
            3.  Convenient control mode
            4.  Reasonable footprint
            5.  Strong control system compatibility
            6.  Reasonable design
Specification table
Model
NCMF-400B
NCMF-600B
NCMF-800B
Material thickness(mm)
0.4-3.2
Material width(mm)
400
600
800
Coil inner diameter(mm)
450-530
Coil outer diameter(mm)
1200
Coil weight(kg)
6000
8000
8000
Decoiler power(Hp)
2
3
5
Straightener power(kw)
2.9
5.5
7.5
Expansion style
Manual expansion
Hydraulic expansion
Size(m)
4.3*2.1*1.8
4.5*2.5*1.8
4.8*2.9*1.8
Weight(T)
3.5
6.4
8
Electronic control configuration table
Name
Brand
servo motor
Yaskawa
7 inch human-machine interface
Mitsubishi
4.3 inch human-machine interface
Mitsubishi
Conventional motor
Taiwan TECO
Frequency converter
Taiwan DELTA
Pneumatic Components
SMC
PLC
Mitsubishi
Relay components, etc.
Schneider
power cable
Baosheng cable(Flame retardant)
Certifications
Detailed Images

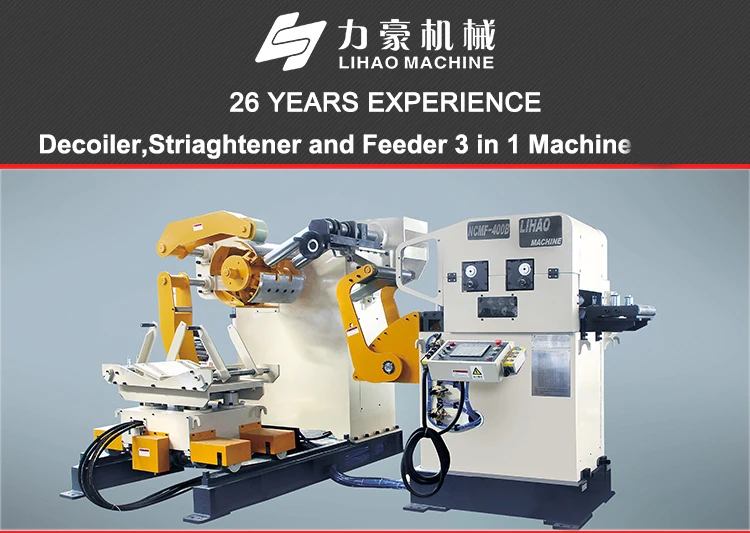

Decoiler straightener feeder, 3 in 1

Decoiler/uncoiler, straightener, NC servo roll feeder, as 3 in 1 feeder.
Saving space in work shop.
Full automatic feeding.

Mandrel of uncoiler

Four pieces of plates.
Each plate is fixed by screws very well.
Cantilever type.

Round mandrel of uncoiler

Automatic expansion, by hydraulic cylinder drive.

Full round, for better loading.

Ruler at plate of mandrel

It can indicate width of coil material.

Ruler at plate of mandrel

..., 400, 300, 200, 100, 0 | 0, 100, 200, 300, 400, ...
User can put coil material at center line position of this machine very easiliy.

Arm shape pressing device.

Drived by pneumatic cylinder or hydraulic cylinder.
Coil material will not become loosed.

Retainers of uncoiler

They can keep coil material at center line position.
Easy to use.

Motor for hydraulic pump.

Powerful AC motor make sure of hydraulic pressure.
Cooling system is optional.

Motor for uncoiler

Powerful AC motor is adopted.
Cover is adopted to protect the motor.

Hydraulic cylinder for uncoiler

Hydraulic cylinder drives for automatic expansion, for mandrel of uncoiler.
Cover is adopted to protect it.

Guiding device for straigntener and feeder

While uncoiler decoil coil material, so material can get into entrance of feeder easily.

Entrance of straightener and feeder

Guiding device, let material at center line position.
Good design, safe and easy to use.

HMI controller

Touch screen and buttons.
User touch numbers and input feeding length numbers.
User touch order menu for the machine.

Dial gauge for straightener

Straightener has upper staightening rollers and lower straightening rollers.
As per various thickness of coil material, user need to adjust distance between upper rollers and lower rollers.

With the dial gauge, user can adjsut distance easily.

Gear set of straightener and feeder

Precise gear set is adopted, for high speed and high precision feeding.

Discharge exit of feeder

Rollers, limiting stopper, etc, are adopted for straight feeding also.
