3 in 1 hydraulic uncoiler straightener feeder for press and cutting

FOB Reference Price:Get Latest Price
$20,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NCHF-400B NCHF-600B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Energy & Mining
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Machine Type:
uncoiler&straightener&feeder
Type:
Uncoiler&straightener&feeder
Use:
Sheet
Certification:
CE
function:
feed metal strip to press machine
feeder motor:
servo motor
Material thickness:
0.3-2.2mm
Material width:
400-600mm
Coil weight:
2000-3000kg
Decoiler power:
2-3HP
Expansion style:
Manual expansion&Hydraulic expansion
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description





3 in 1 hydraulic uncoiler straightener feeder for press and cutting



Features

1. Flexible operation mode: All the functions of the feeder are concentrated on the PLC and a portable knob.

2. High efficiency and safety: It reduces unnecessary time and improves work efficiency that mechanical action instead of manual operation.

3. Convenient control mode: Users can freely switch between punch master or device master according to their needs.

4. Reasonable footprint: While Lihao NCLF series are powerful, the form factor are also the most reasonable in the industry.

5. Strong control system compatibility: The NCLF series uses a full set of Japanese Mitsubishi control systems.,

6. Reasonable design: The NCLF series is the first product in the industry to introduce industrial design. While ensuring the basic performance of the equipment, it maximizes the visibility of the equipment and improves the              comfort of operation.





Specification table

Model NCHF-400B NCHF-600B
Material thickness(mm) 0.3-2.2
Material width(mm)400600
Coil inner diameter(mm)450-530
Coil outer diameter(mm) 1200
Coil weight(kg)20003000
Decoiler power(Hp)23
Straightening power(Kw) 1.82.9

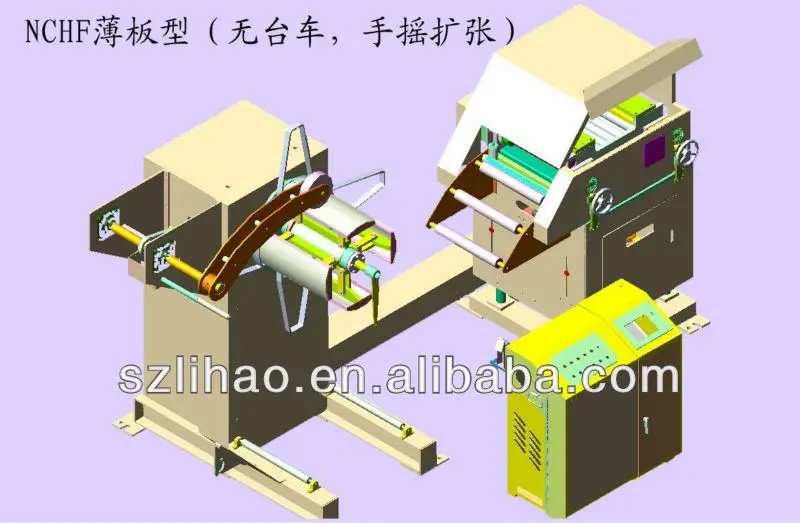

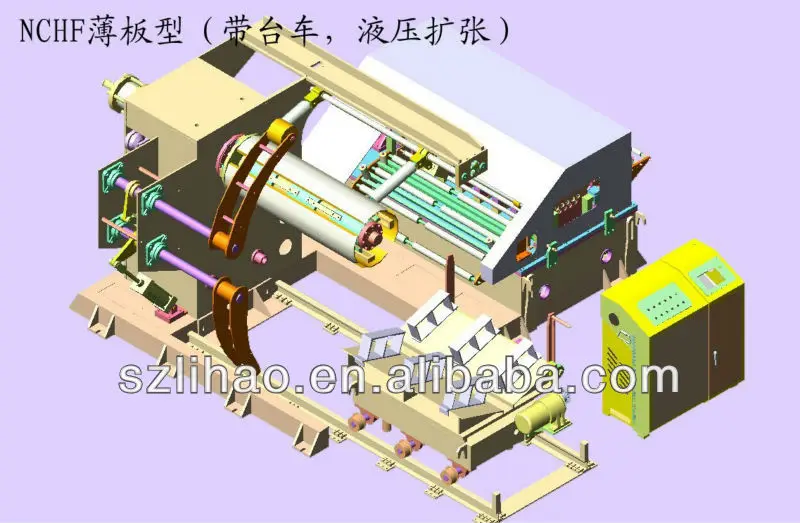

Expansion style Manual expansionHydraulic expansion
Size(m) 3.8*1.7*2.33.8*2.4*2.3
Weight(T)3.2

6



Electronic control configuration table

ModelBrand

servo motor

Yaskawa

7 inch human-machine interface

Mitsubishi

4.3 inch human-machine interface

Mitsubishi

Conventional motor

Taiwan TECO

Frequency converter

Taiwan DELTA

Pneumatic Components

SMC

PLC

Mitsubishi

Relay components, etc.

Schneider

power cable

Baosheng cable(Flame retardant)



Hydraulic station configuration table

Name

Model

Amount

Brand

Lifting cylinder

NCLF-1.6.4

1

Wuqiang

overflow valve

RVP-02-LC

1

Dengsheng

Electromagnetic reversing valve

D4-02-2M3M-A2

1

Dengsheng

Clamping cylinder

NCLF--1.4.6

1

Wuqiang

Rotary joint

NCLF-1.4.5

1

New Ma Tai

Hydraulic control check valve

PCVA-02-A

1

Dengsheng

Electromagnetic reversing valve

D4-02-3C4-A2

1

Dengsheng

Oil motor

OMP-160

1

Danfoss

Brake valve

MMR-01-C-30

1

Yuci

One-way throttle

TVCW-02-I-V

2

Dengsheng

Electromagnetic reversing valve

D4-02-3C2-A2

2

Dengsheng

Pressure gauge switch

KF-L8/14E

1

Liming

Pressure gauge

W2 1/2-250

1

Dengsheng

Substrate

NMC-01-4-00

1

Yuci

Check valve

OH-03-A1

1

Dengsheng

Oil filter

MF-06

1

Dengsheng

Oil pump

RA7RD66

1

Dengsheng

Motor

CT-08-5HP-4P-3J-V

1

Dengsheng

Liquid level thermometer

LS-3

1

Dengsheng

Air filter

HS-1162

1

Dengsheng
