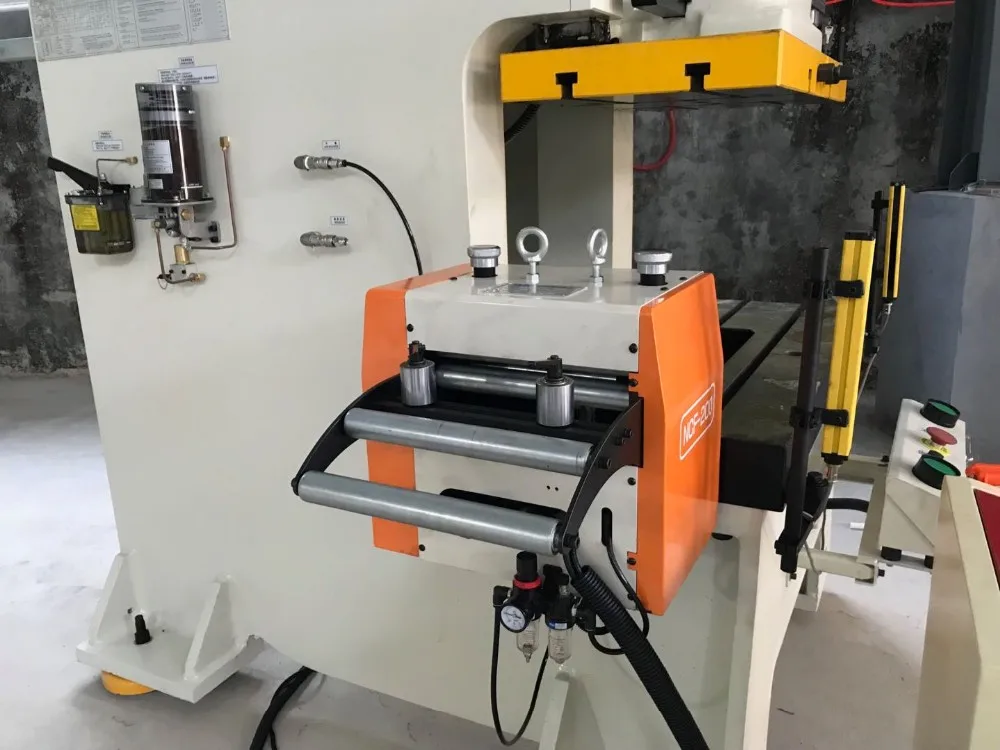

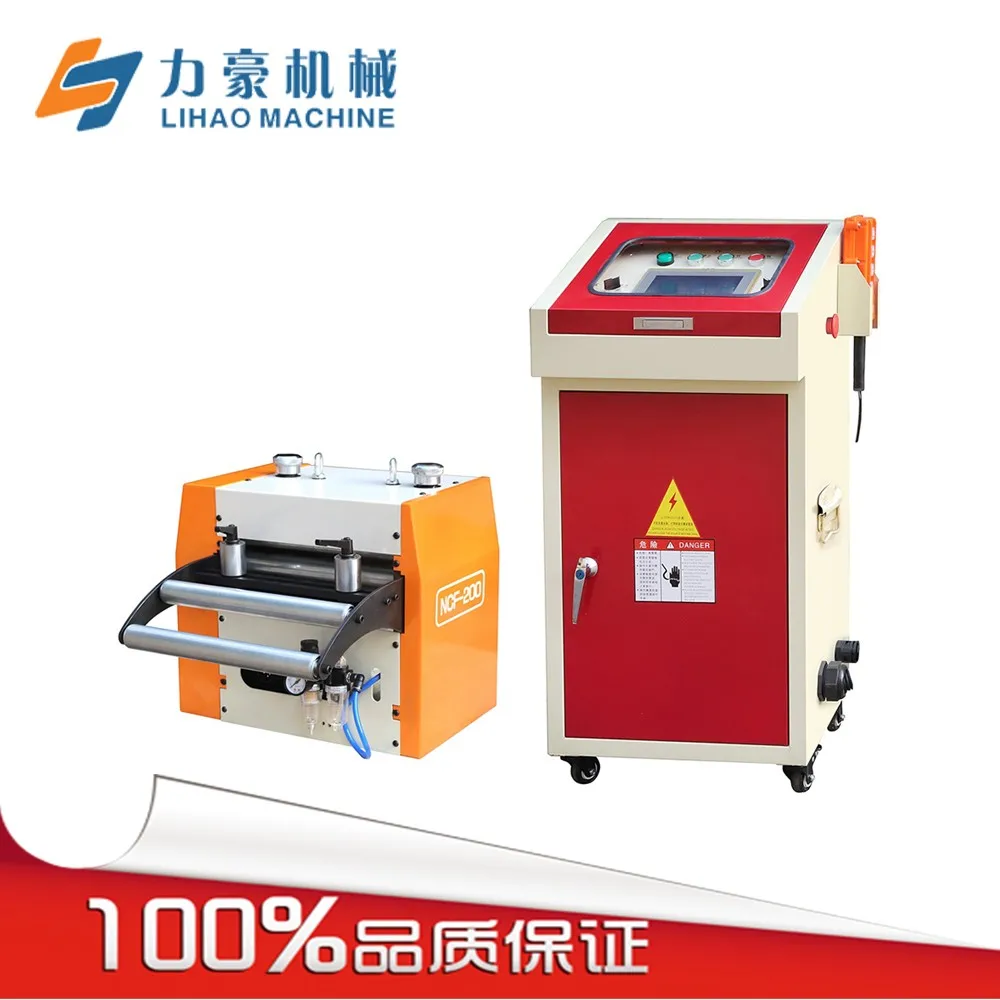

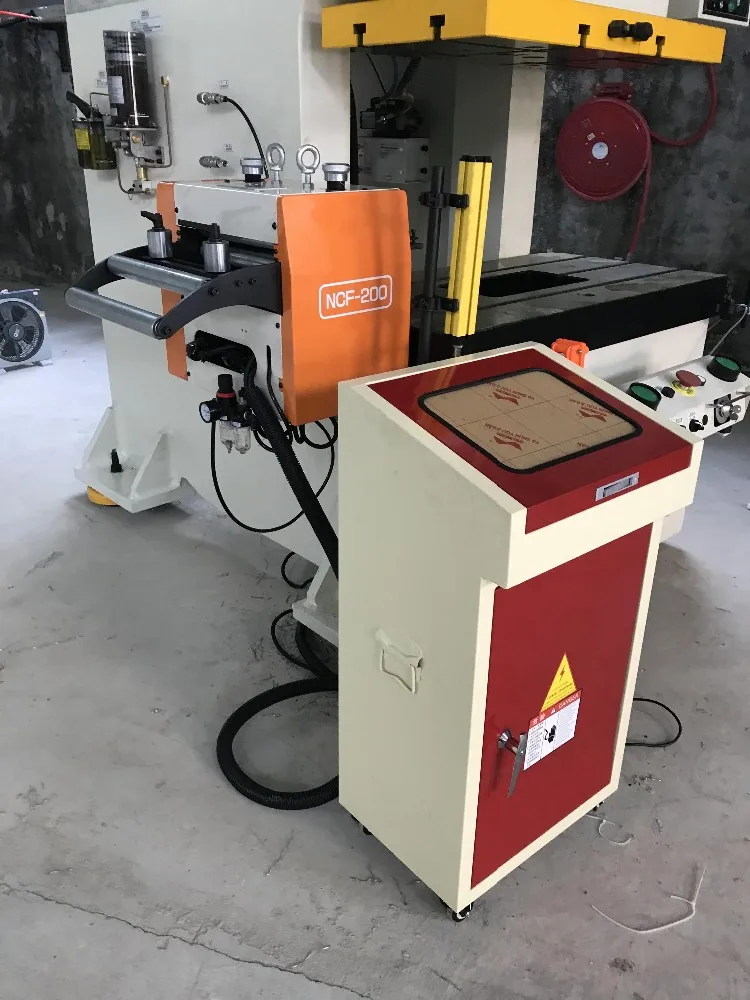

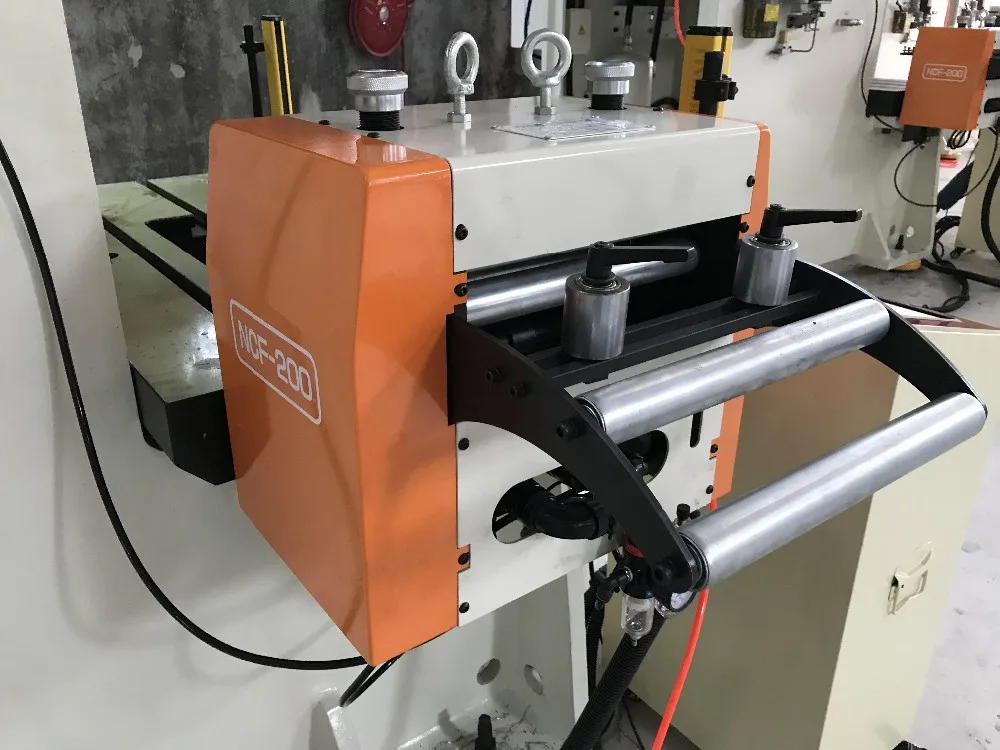

Nc precision servo coil feeder for stamping press machine

FOB Reference Price:Get Latest Price
$1,000.00 - $8,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
NC-200 NC-300 NC-400 NC-500
Lead Time:
Quantity(Units) 1 - 30 >30
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
Place of Origin:
Guangdong, China
Brand Name:
LIHAO
After-sales Service Provided:
Online support, Video technical support
Warranty:
1 Year
Machine Type:
press machine
Product name:
NC servo roll feeding machines
Function:
feed metal strip to press machine
Certificate:
CE
Numerical control:
Mitsubishi PLC
Servo motor:
China brand Yixin
HMI:
Samkoon
Encoder:
TMGW
Push-button switch:
TEND
Air switch:
CHNT
Slackening style:
Pneumatic
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
SHENZHEN
Lead Time :
Quantity(Units) 1 - 30 >30
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Features

1.It is suitable for processing feeding materials with various thickness and length.
2.It is suitable for high-speed and long feeding and can increase productivity and feeding accuracy.
3.The simple operation panel is equipped with numerical keys for feeding length and speed, which can be easily set by     the operator to make feeding fast and accurate.
4.It adopts Air-powered releasing device (the releasing is accurate ) that can be used in long time and high intensity           with low hazard rate.
5.It adopts high-quality and brushless servo motor drive to efficiently shorten the time for delivery,adjustment and test     time.
6.It adopts high-sensitivity decoder to ensure back-feeding accuracy and improve feeding accuracy.
7.It equipped with synchronous belt drive that can eliminate the gear gap and guarantee low abrasion ,noiseless,free of     lubrication,security and environmental protection.

8.Motor is internally installed so as to avoid possible damages during transportation and loading.


Structure

1.It adopts high-quality and brushless servo motor drive to efficiently shorten the time for delivery,adjustment and test     time.
2.It adopts high-sensitivity decoder to ensure back-feeding accuracy and improve feeding accuracy.
3.It equipped with synchronous belt drive that can eliminate the gear gap and guarantee low abrasion ,noiseless,free of      lubrication,security and environmental protection.
4.Motor is internally installed so as to avoid possible damages during transportation and loading.

Detailed Images

Control panel

1. The human-machine interface adopts Taiwan                         PanelMaster 's 7-inch high-definition large screen .
2. The switch adopts sliding contact with self-cleaning             function.
3.  It uses self-resetting flat button.

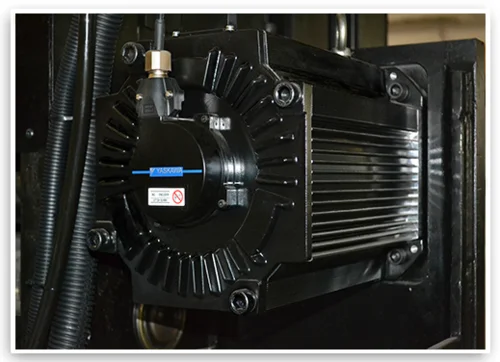

Servo motor

Both the servo motor and the driver use the Yaskawa brand (optional) to greatly improve the performance of the device and maximize device performance and solve problems.

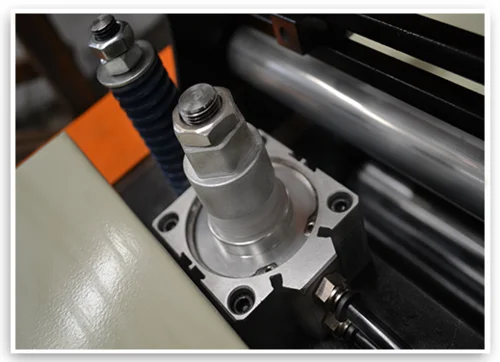

Feed cylinder

It adopts genuine AirTAC cylinder, alloy cylinder, hard oxidation, riveting without leaking.It uses solid aluminum for CNC precision machining. And the inner wall is smooth and not stuck.Therefore it has high working efficiency, high strength operation and durability that is suitable for various working conditions.

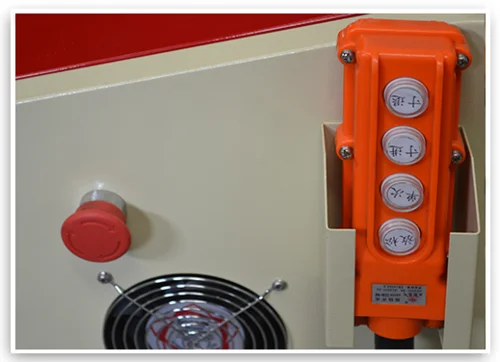

Operating handle

1.The electric control box has a separate operation box , which is convenient to change position and save time.
2. The electric control box is equipped with an emergency stop button.
