2 in 1 high speed uncoiler and leveler for sale in stock

FOB Reference Price:Get Latest Price
$1,500.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
GO-200 GO-300 GO-400 GO-500 GO-600
Lead Time:
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 30 50 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Construction works
Condition:
New
Type:
Decoiler and Straightener
Use:
metal sheet strip coil, metal sheet strip
Place of Origin:
China
Brand Name:
LIHAO
Voltage:
220V, 380V, 415V, 3 Phase, 50 Hz
Power(W):
1kw
Dimension(L*W*H):
1880 x 980 x 1520mm
Weight:
600KG
Certification:
CE certificate
Warranty:
1year, 1 Year
After-sales Service Provided:
Field maintenance and repair service, Video technical support, Online support
Material width(mm):
200-600
Material thickness(mm):
0.35-2.5
Material I.D(mm):
450-530
Material O.D(mm):
1200
Material weight(kg):
800-2000
Motor(HP):
3
expansion type:
manual
using:
Simple Operate
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 30 50 To be negotiated





2 in 1 high speed uncoiler and leveler for sale in stock



Feature:

1.  Decoiler combines straightener 2 in 1, it save more space.

2.  The material frame adopts cantilever beam design, all the materials of the frame are cut by laser plasma, with high precision and good equipment interchangeability

3.  The straightening head is designed with a parallel roller. Four-point fine-tuning is more suitable for processing high-precision products. The four-point independent pressure is used to adjust the feed wheel pressure to prevent material deviation.

4.  The correction wheel is made of solid bearing steel, and the intermediate frequency is thickened and plated. The surface hardness is not lower than HRC58, ensuring the material is durable.

5.  All parts are processed by CNC, and the interchangeability is good.

6.  The whole equipment adopts the assembled structure, and the general skilled workers can assemble and replace the equipment parts, greatly reducing the maintenance cost.



Specification :

Model

GO-200

GO-300

GO-400

GO-500

GO-600

Material width

200mm

300mm

400mm

500mm

600mm

Material thickness

0.35-2.5mm

Coil.I.Dia

450-530mm

Coil.O.Dia

1200mm

Expand type

Manual expansion

Coil weight

800kg

1000kg

1500kg

2000kg

2000kg

Motor

1HP

2HP

2HP

3HP

3HP

Speed

15m/min

Straightening roller Qty

7pcs(3up / 4 down)

 Expand type

Manual expansion

Straightener adjustment

Four points floating adjust

Induction type

Touching type

Retainer

manual“A”shape rack



Straightening Capacity :

Thickness

Material Width



GO-200

GO-300

GO-400

GO-500

G0-600

0.4mm

200mm

300mm

400mm

500mm

600mm

1.5mm

200mm

300mm

400mm

500mm

600mm

2.0mm

200mm

300mm

400mm

400mm

500mm

2.5mm

160mm

240mm

320mm

400mm

480mm

 Machine Details:

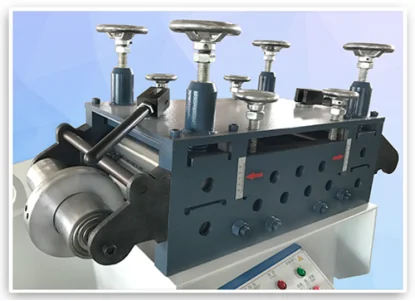

·Straightener head

1.  Adopt parallel roller design, 3 up / 4 down, totally 7 rollers.
2.  Adopt four point fine adjustment is adopted, which is more suitable for processing high-precision products.      Adopt four point independent pressure to adjust the pressure of feeding roller for entrance and exit, which can             prevent material deviation and deformation effectively.

3.  The supporting roller adopts the galvanizing roller without power, the material is one body formed, the surface is scratch-resistant and wear-resistant, use the mechanical bearing, rotating flexible and durable.

4.  Handwheel made of cast iron, surface is electroplated. It is the most traditional handwheel.

5.  The transmission part is protected by protective cover on both sides, equipped with observation window for easy viewing.

·Straightening roller

1.  The straightening rollers are made of solid bearing steel, thickening plating treatment after medium frequency, surface hardness is not less than HRC58, to ensure material durability.

2.  Adopt GCr15 forging round steel, after preheating treatment (spheroidal annealing), then turning, milling, intermediate frequency treatment, rough grinding and cold stabilization, then fine grinding, finally electroplating.                   Maximized guarantee the accuracy, concentricity, finish and hardness, and extended the using life of the rollers.

·Electric control box

1.  Adopt silver alloy relay, full copper coil, flame retardant safety base, long lasting and durable.

2.  Adopt safety protection adjustment circuit time delay relay, silver alloy contact, satisfied different delay ranges.

3.  The switch adopts sliding contact ,with self-cleaning function , normally open and normally closed contact adopts separate bonding structure, can work with different poles, equipped with anti-rotation positioning and stop               loose mounting gasket.

4.  Adopt self-duplex flat button, the force is light, the key range is moderate, the building block type combination structure. The contact is made up of keto-base composite points with strong conductivity and large current, with a       life span of up to 1 million times.

·Power part

1. Adopt model 80 worm gear vertical reducer, use the speed converter of gear , reduce the rotation number of motor to desired rotation number ,and get the mechanism with larger torque.

2. Adopt vertical motor, low vibration, low noise, stator rotor part adopt pure copper coil, life is 10 times of ordinary coil, both ends are equipped with ball bearing, low friction, low temperature.

FAQ

How To Select Straightener Feeder & Uncoiler 2 in 1 Machine

-What's your material?

-Max. width of your strip in coil form ...mm

-Max. Min thickness of your strip ...mm

-Max. weight of your strip in coil form...kg

-What's the inner diameter of your coil...mm

-What's the outer diameter of your coil...mm
