Pneumatic press punching machine

FOB Reference Price:Get Latest Price
$8,000.00 - $28,000.00 / Units | 1 Unit/Units (Min. Order)
Nominal Force (kN):
250 450 600 800 110
Model Number:
JH21-25 JH21-45 JH21-60 JH21-80 JH21-110
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Slide Stroke (mm):
70
Applicable Industries:
Machinery Repair Shops, Energy & Mining, Food & Beverage Shops
Condition:
New, New
CNC or Not:
CNC, Normal
Power Source:
Mechanical, Mechanical
Place of Origin:
Guangdong, China
Brand Name:
LIHAO
Dimension(L*W*H):
1650mm x 1250mm x 2735mm
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Competitive Price
Voltage:
380V/220V Optional
Weight:
2-15T
Certification:
CE ISO
Powe:
380V 60HZ
Power(W):
2.6X6
Weight (KG):
6000
Supply Ability
Supply Ability:
10 Unit/Units per Month
Packaging & Delivery
Packaging Details
Film packing
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Product Features

◆ Steel plates welded as machine body, treated to remove internal stress, marked with high rigidity;

◆ Crankshaft longitudinally arranged, compact structure and beautiful outlook;

◆ Hexagonal guide rails of extra length, guide in high precision;

◆ Combined-type pneumatic friction clutch-brake, steady engagement, low noise level;

◆ Hydraulic overload protection device for JH21 and rigid protection device for JF21 to prevent damage of the machine tools due to overload;

◆ PLC-controlled electric circuit, safety duplex valve for air pipelines, flexible and highly sensitive in movement,safe and reliable, single time, inching and continuous operations for options, conforming to the safety standard for stamping machines;

.

Model

JH21-25
JH21-45
JH21-60
JH21-80
JH21-125
Nominal force
KN
250
450
600
800
1250
Stroke of nominal force
mm
3
4
4
5
5
Stroke of sliding block
mm
80
120
140
160
180
Number strokes
min-1
100
80
70
60
50
Maximun height for die loading
mm
250
270
300
320
350
Adjustment range for die loading height
mm
50
60
70
80
90
Distance from slid block centre to the frame
mm
210
225
270
310
350
Space between columns
mm
450
500
560
620
660
Bottom size of sliding block
Left-right
mm
360
410
480
540
620
Front-back
mm
250
340
400
460
520
      Hole size for die handle
Diameter
mm
40
50
50
50
70
Depth
mm
65
60
60
90
90
                                                                    Size of                worktable
Left-right
mm
700
810
870
950
1070
Front-back
mm
400
440
520
600
680
Thickness
mm
80
110
130
140
155
Blank-holding hole
mm
150
150
150
150
160
Distance from worktable to ground
mm
780
800
900
900
900
Distance of ground bolts
Front-back
mm
835
950
1100
1235
1510
Left-right
mm
690
745
840
920
1040
Main motor capacity
kw
2.2
5.5
5.5
7.5
11
Press Dimension
Front-back
mm
1346
1435
1685
2125
2355
Left-right
mm
945
1075
1200
1760
1875
height
mm
2120
2391
2570
3040
3255
Weight
kg
2700
3800
5300
6600
10500
Detailed Images

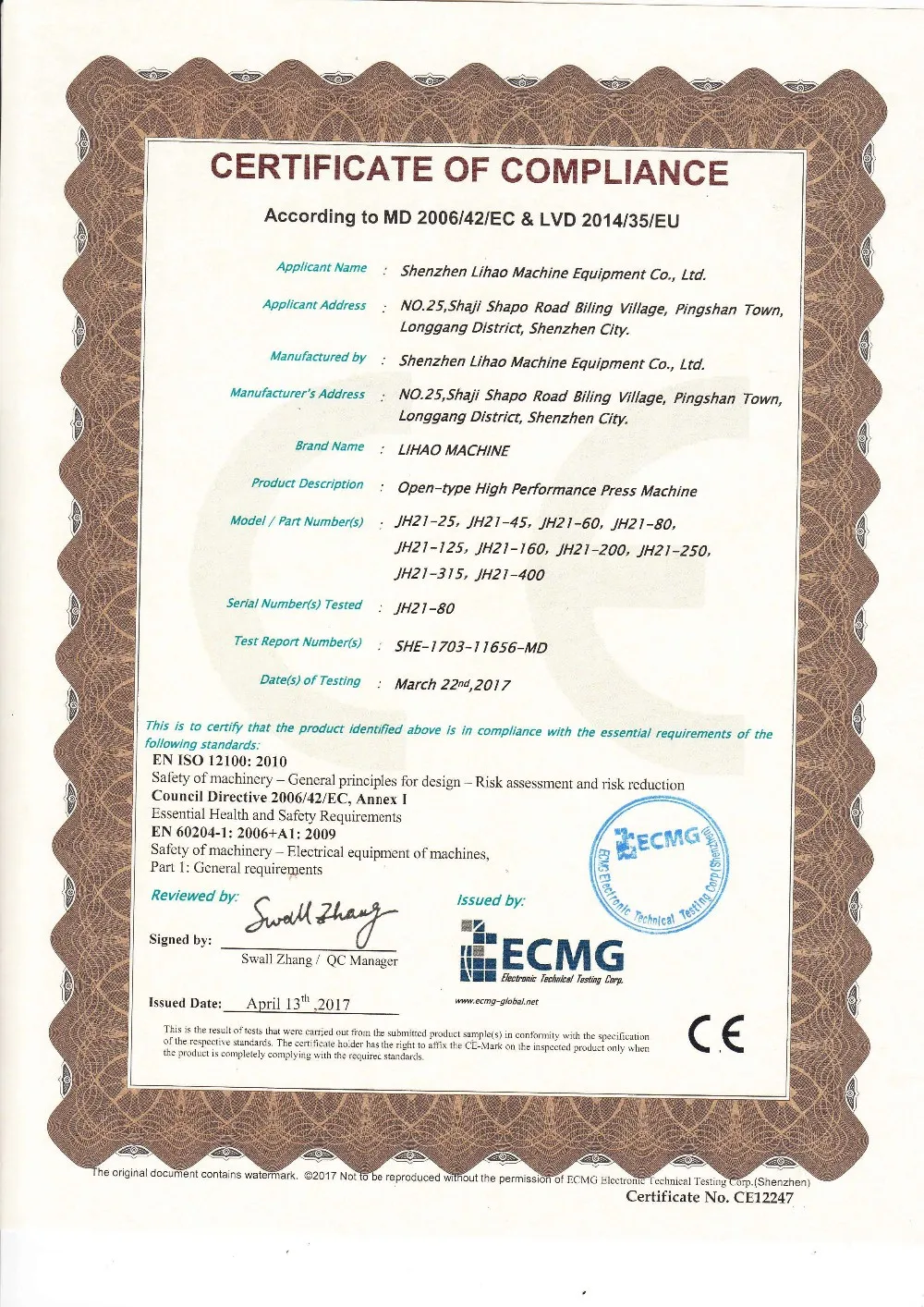

Certifications
