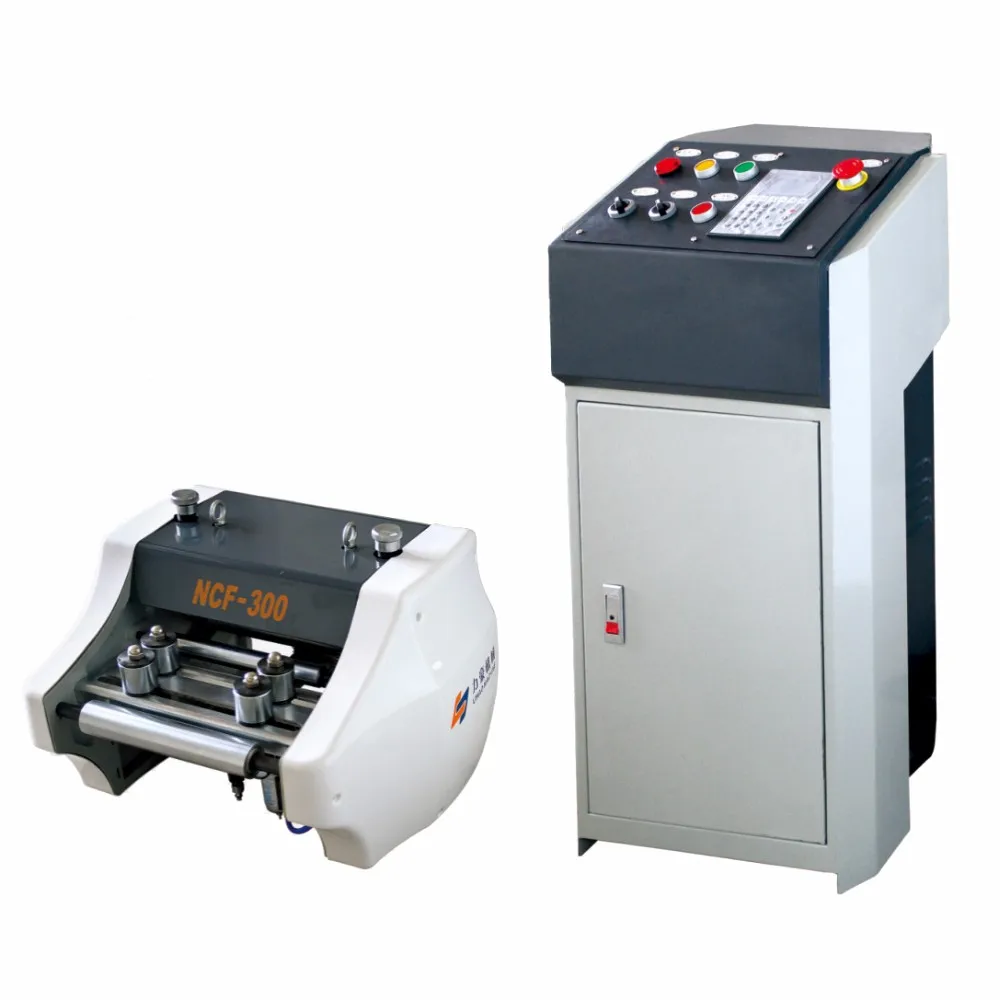

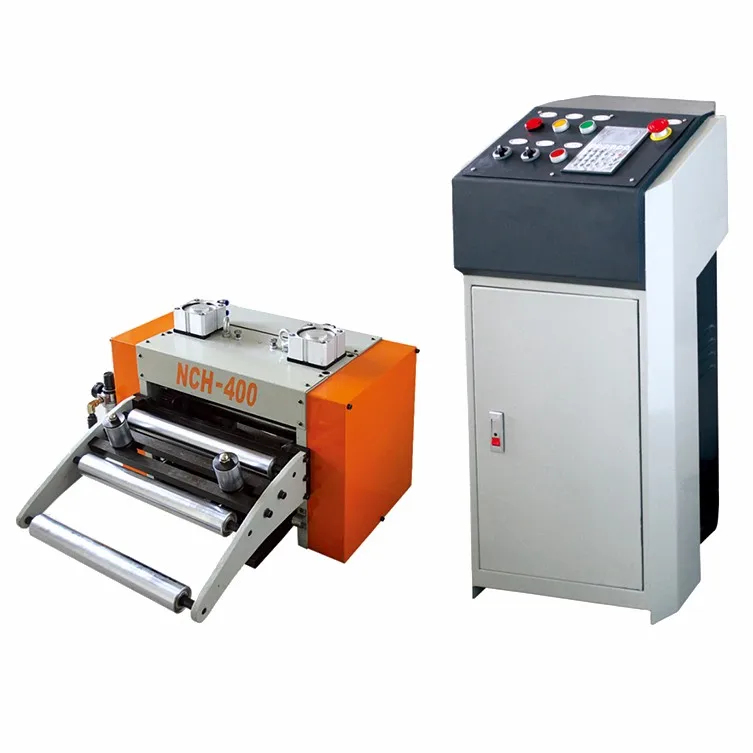

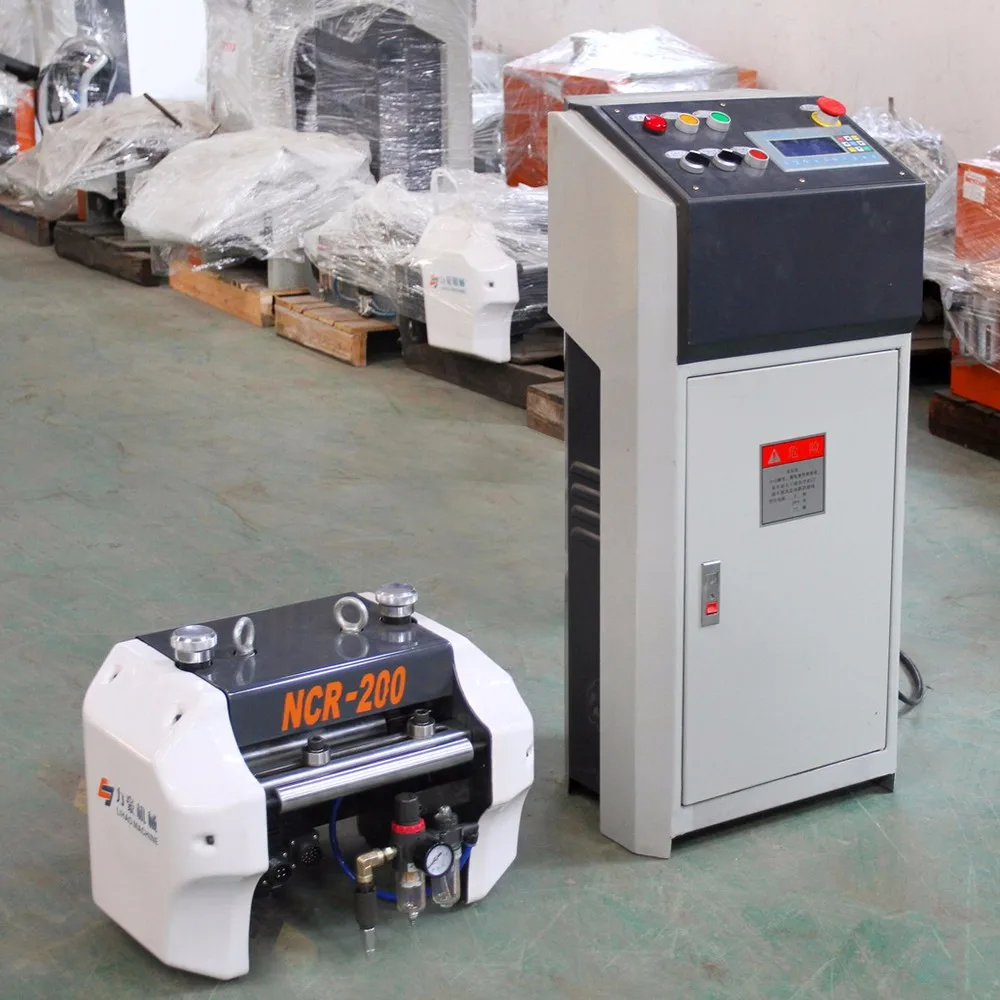

Auto Sheet Feeder For Press Machine

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
Model Number:
NCR
Slacking style:
Pneumatic
Certificate:
CE
Servo motor:
Yaskawa
Numerical control:
Mitsubishi PLC
Contactor:
Schneider
Relay:
Schneider
Solenoid valve:
SHKAO
Air switch:
CHNT
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
In wooden case
Port
Shenzhen port
Lead Time :
15 working days
Product Description

Product Application

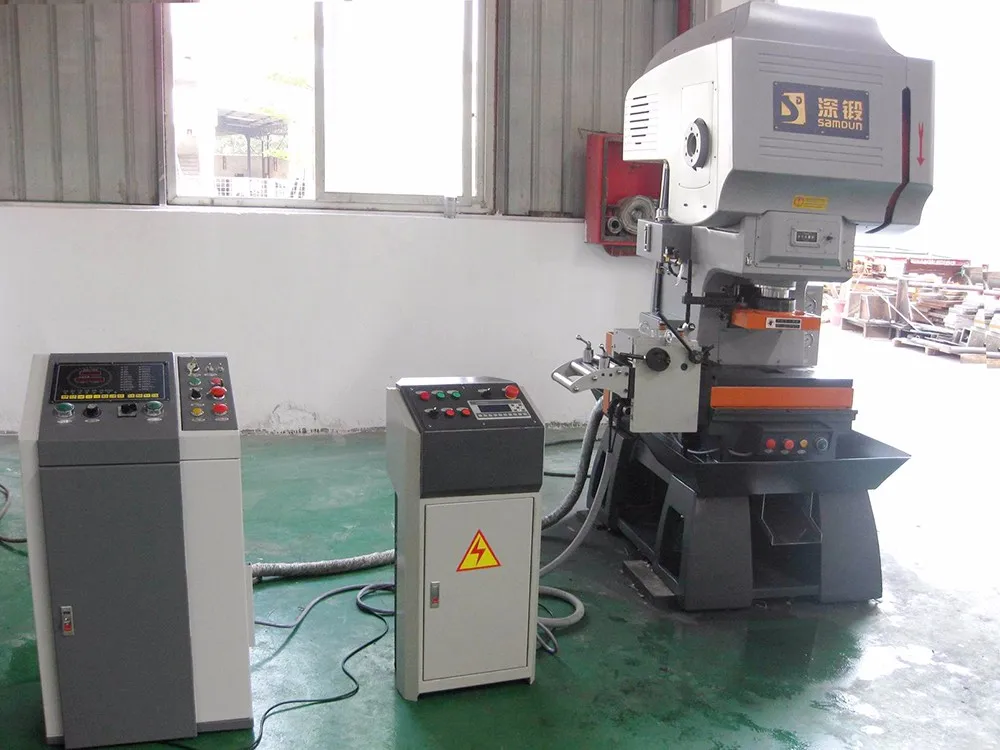

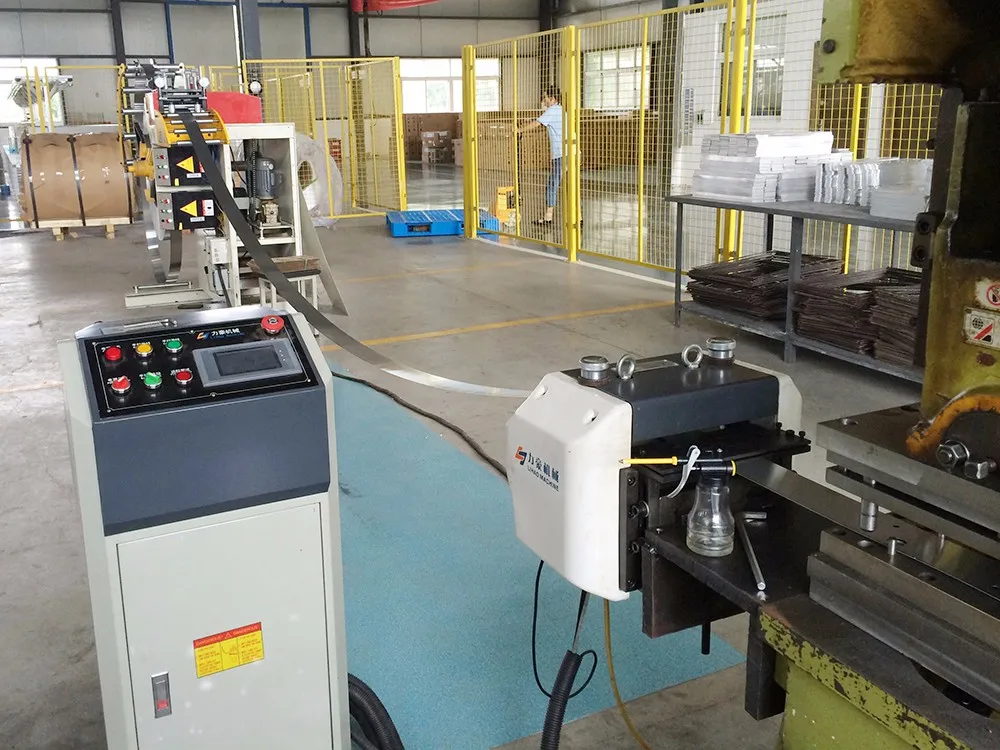

1. This good machine can clamp sheet metal and feed the sheet metal to press machine, for automatic stamping processing.
2. It drives by servo motor.

Main Features

1. It can feed material for various thickness and feeding stroke length.
2. It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
3. With a good operation panel, so users can input feeding length number, feeding
speed number freely. Feeding length range is 0.1mm-9999.99mm.
4. It adopts pneumatic cylinder releasing method, with little malfunction.
5. Mechanical releasing method can be made according to customers’ requirement.
Model
NCR-200
NCR-300
NCR-400
NCR-500
Max. Feeding width (mm)
200
300
400
500
Max. Feeding length (mm)
9999.99
9999.99
9999.99
9999.99
Material Thickness (mm)
0.2-2.2
0.2-2.2
0.2-2.2
0.2-2.2
Feeding line height (mm)
60-190
60-190
60-190
60-190
Max. Feeding speed (m/min)
20
20
20
20
Releasing Method
pneumatic
pneumatic
pneumatic
pneumatic
Feeding capacity
1.6
200
300
400
500
(Thickness × Width)
2
175
300
335
500
(mm)
2.2
150
290
290
450
Electrical power
3 Phase, AC380V±10%,50HZ ±2% (It can be changed according to your requirement)
Pneumatic pressure
0.5Mpa
Certifications
Detailed Images

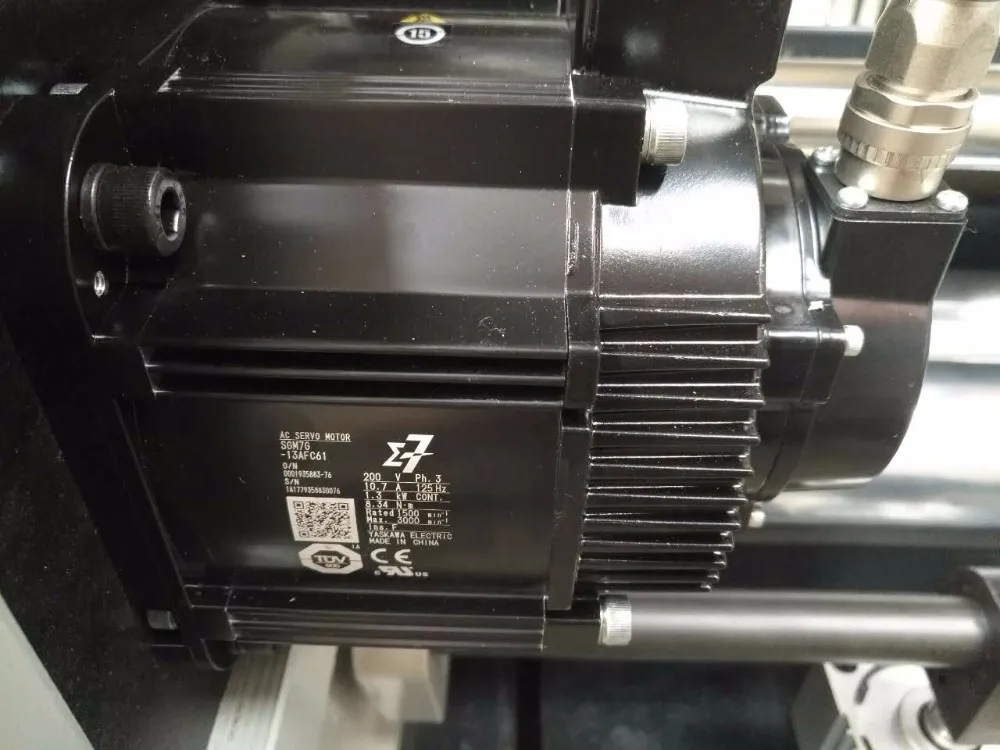

Drive Power:

Yaskawa servo motor

Name: Servo motor

Brand: Japan Yaskawa

Feeder machine driven by high quality and brushless servo motor, shorten the time of feeding length adjust and testing effectively.

Motor is built- in installed to avoid the damages may caused during transportation and loading.

Numerical control:

Mitsubishi PLC

Name: PLC
Brand: Japan Mitsubishi
Feeder machine controlled by PLC with high precision.

Electrical component:

Schneider Contactor

Name: Contactor
Brand: France Schneider

Omron Relay

Name: Relay
Brand: Japan Omron

SHAKO Solenoid Valve

Name: Solenoid Valve
Brand:  Taiwan SHAKO

Operation panel:

HMI: Taiwan Veinview or YK HMI


Language: Chinese & English


Yaskawa driver

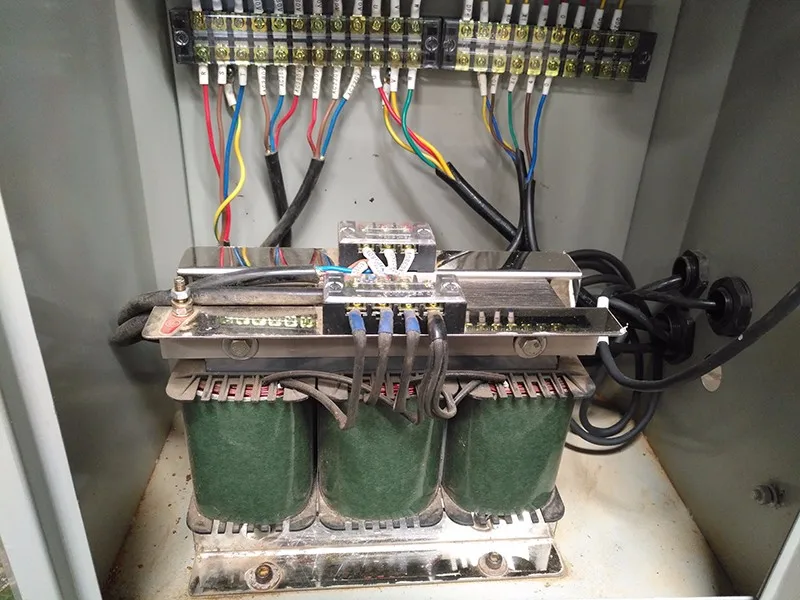

Transformer if needed

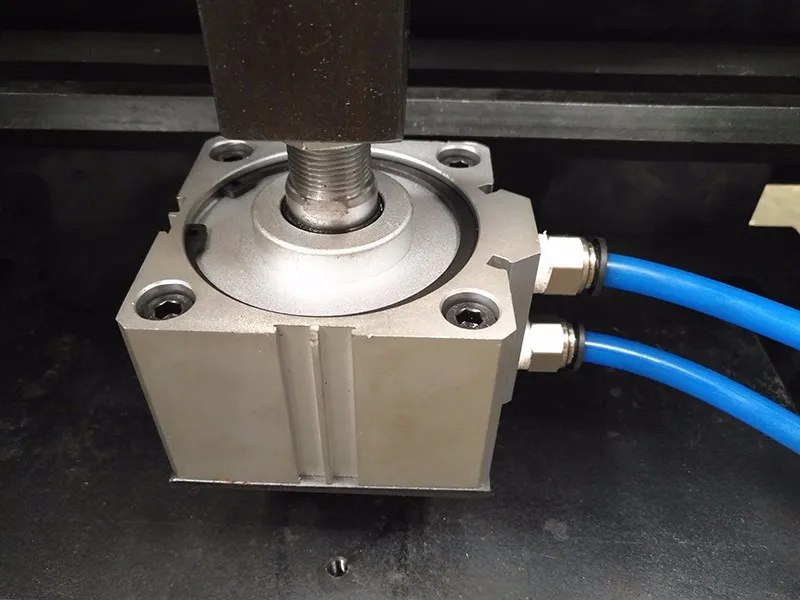

Air cylinder

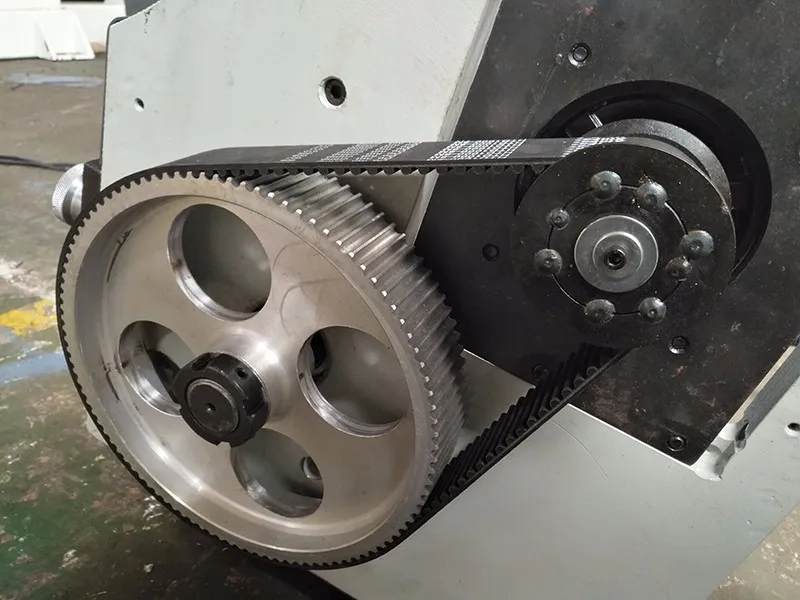

Gear

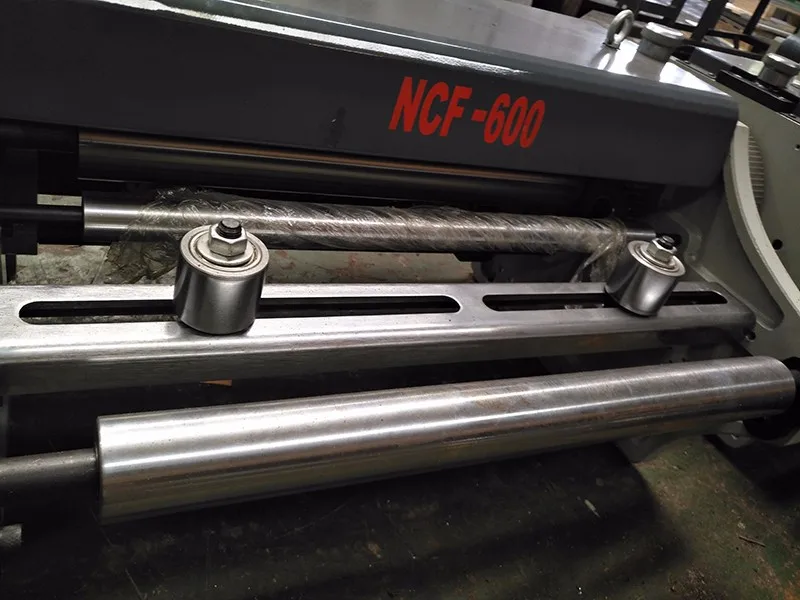

Feeding roller

Input supporting roller &

Limit block
