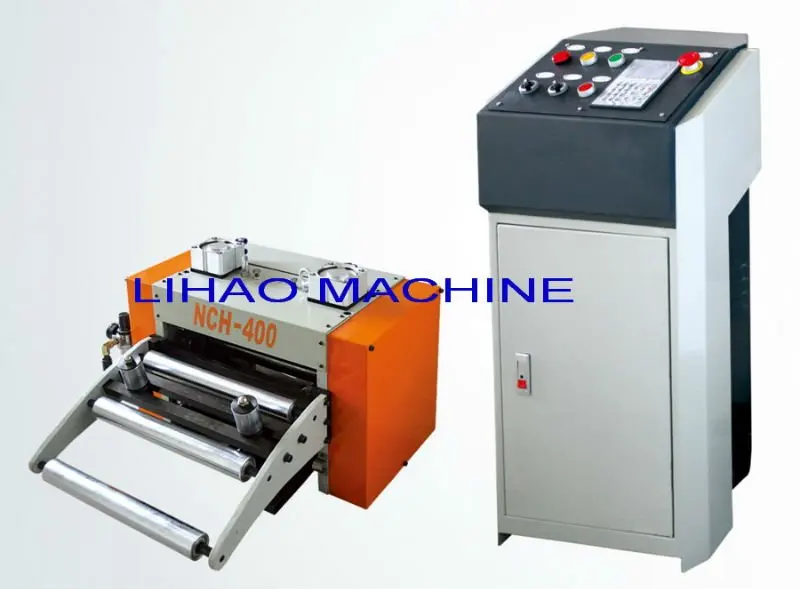

NC Roll Feeder For Metal Sheet Stamping Industry

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
NCH
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Feeder Machine
Use:
Sheet
Place of Origin:
Guangdong, China
Brand Name:
LIHAO
Voltage:
Customized
Power(W):
1-7.5KW
Dimension(L*W*H):
980*760*1380
Weight:
350-550kg
Certification:
Trade Assurance
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support, Overseas service center available
Function:
cut coil material to sheet
Motor:
Yaskawa
PLC:
Mitsubishi
Human Machine Interface:
Taiwan Veinview
Frequency Converter:
Taiwan Delta
Bearing:
Japan NSK
Relay:
Omron
Electrical Element:
Schneider
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
In wooden case
Port
Shenzhen
Product Description

Product Application

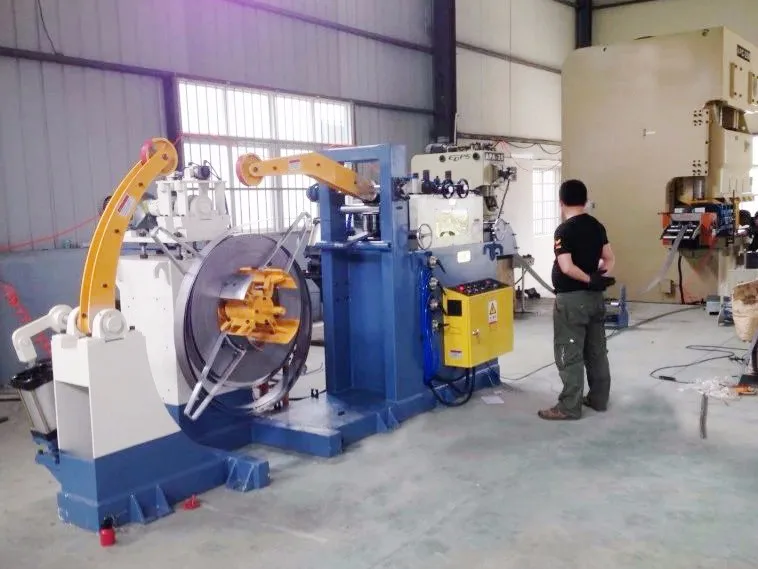

1. This good machine can clamp sheet metal and feed the sheet metal to press machine, for automatic stamping processing.
2. It drives by servo motor.

Main Features

1. It can feed material for various thickness and feeding stroke length.
2. It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
3. With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is 0.1mm-9999.99mm.
4. It adopts mechanical rod releasing method, with little malfunction.

Model
NCH-300
NCH-400
NCH-500
NCH-600
Max. Feeding width (mm)
200
300
400
500
Max. Feeding length (mm)
9999.99
9999.99
9999.99
9999.99
Material Thickness (mm)
0.5-6.0
0.5-6.0
0.5-6.0
0.5-6.0
Feeding line height (mm)
100-250
100-250
100-250
100-250
Max. Feeding speed (m/min)
20
20
20
20
Releasing Method
Pneumatic
Pneumatic
Pneumatic
Pneumatic

Feeding capacity
(Thickness × Width)
 (mm)
4
300
400
500
600
5
200
200
350
550
6
100
100
200
400
Electrical power
3 Phase, AC380V±10%,50HZ ±2%
 (It can be changed according to your requirement)
Pneumatic pressure
0.5Mpa
Certifications
Detailed Images

Drive Power:

Yaskawa servo motor

Name: Servo motor

Brand: Japan Yaskawa

Feeder machine driven by high quality and brushless servo motor, shorten the time of feeding length adjust and testing effectively.

Motor is built- in installed to avoid the damages may caused during transportation and loading..

Numerical control: Mitsubishi PLC

Name: PLC
Brand: Japan Mitsubishi
Feeder machine controlled by PLC with high precision.

Electrical component:

Schneider Contactor

Name: Contactor
Brand: France Schneider


Omron Relay

Name: Relay

Brand: Japan Omron

SHAKO Solenoid Valve

Name: Solenoid Valve
Brand: Taiwan SHAKO
