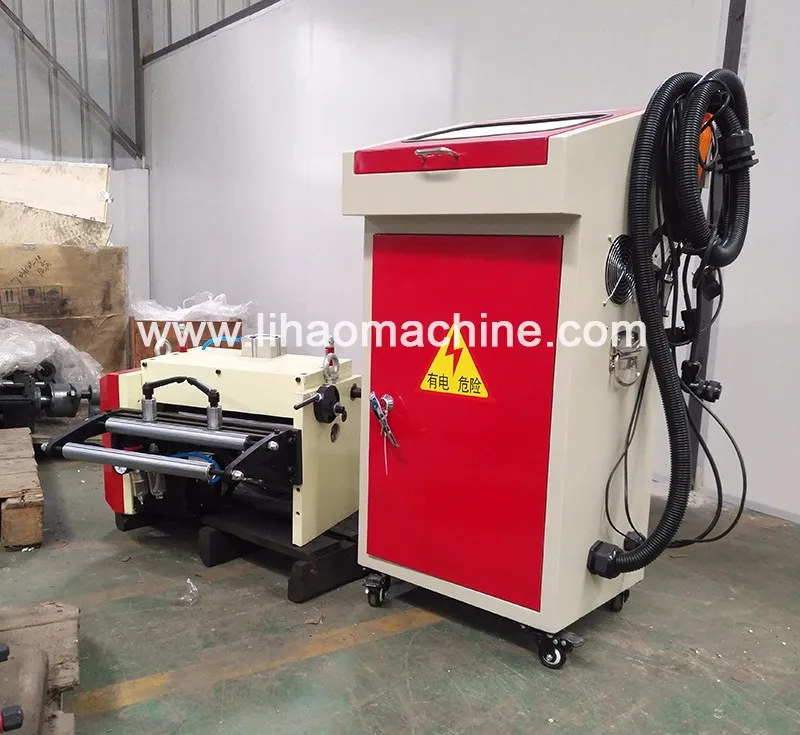

New type nc servo roll feeding machines for aluminium sheet

FOB Reference Price:Get Latest Price
$1,000.00 - $8,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
NEW NCF
Lead Time:
Quantity(Units) 1 - 20 >20
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Place of Origin:
Guangdong, China
Brand Name:
LIHAO
After-sales Service Provided:
Online support, Field maintenance and repair service, Video technical support
Warranty:
1 Year
Machine Type:
feeder
Product name:
NC servo roll feeding machines
Function:
feed metal strip to press machine
Certificate:
CE
Numerical control:
Mitsubishi PLC
Servo motor:
China brand Yixin
HMI:
Samkoon
Encoder:
TMGW
Push-button switch:
TEND
Air switch:
CHNT
Slackening style:
Pneumatic
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
wooden cases
Port
SHENZHEN
Lead Time :
Quantity(Units) 1 - 20 >20
Est. Time(days) 10 To be negotiated
Product Description

Main Features:

1.  NCF roller feeder is suitable for material feeding with different thickness and length.
2.  NCF roller feeder is suitable for high speed and long size feeding to improve productivity and feeding accuracy.
3.  NCF roller feeder simple operation panel, with feeding length and feeding speed of the key number code, the operator can be arbitrary Settings, rapid and accurate, feeding length from 0.1mm - 9999.99mm
4.  NCF roller feeder adopts air pressure type relaxation (accurate relaxation point), which can be used for a long time with zero fault.
5.  NCF roller feeder can be reformed into mechanical relaxation mode according to customer requirements NC.

6.  NCF roller feeder with the best general performance of a model, free in the cylinder press and spring press replacement.


Machine structure:

1.  NCF roller feeder USES high quality, brushless servo motor drive, effectively shorten the feeding distance adjustment and testing time.
2.  NCF roller feeder USES high sensitivity decoder, precise insemination and higher feeding accuracy.
3.  NCF roller feeder with timing belt transmission, can eliminate gear gap, wear, no noise, no lubrication, safety and environmental protection.
4.  Motor internal device can avoid damage during handling and loading and unloading.
5.  NCF roller feeder 600 times under the best cost-effective feed
er.




Product Paramenters
Model
Max. Feeding width
Max. Feeding length
Max. Feeding thickness
Feeding line height
Max. Feeding speed
Servo motor
/
(mm)
(mm)
(mm)
(mm)
(m/min)
KW
NCF-200
200
9999.99
0.2-3.2
70-170
20
AC0.75KW

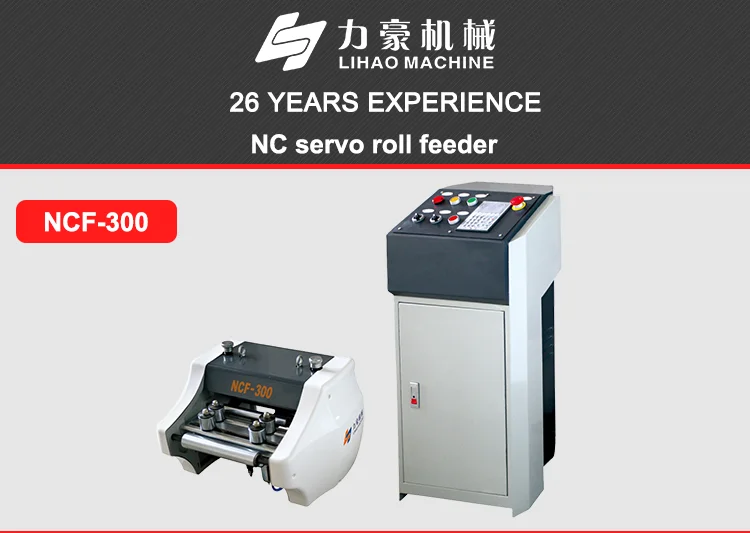

NCF-300
300
9999.99
0.2-3.2
70-170
20
AC0.85KW
NCF-400
400
9999.99
0.2-3.2
70-170
20
AC1.3KW
NCF-500
500
9999.99
0.2-3.2
70-170
20
AC1.3KW
NCF-600
600
9999.99
0.2-3.2
70-170
20
AC1.8KW
NCF-700
700
9999.99
0.2-3.2
90-190
20
AC1.8KW
NCF-800
800
9999.99
0.2-3.2
90-190
20
AC2.9KW

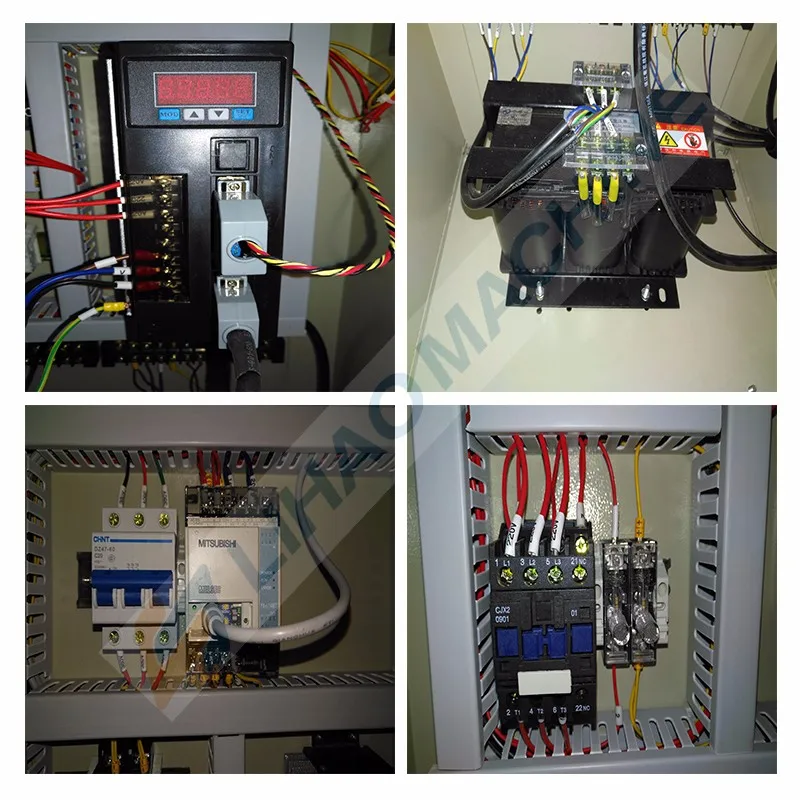

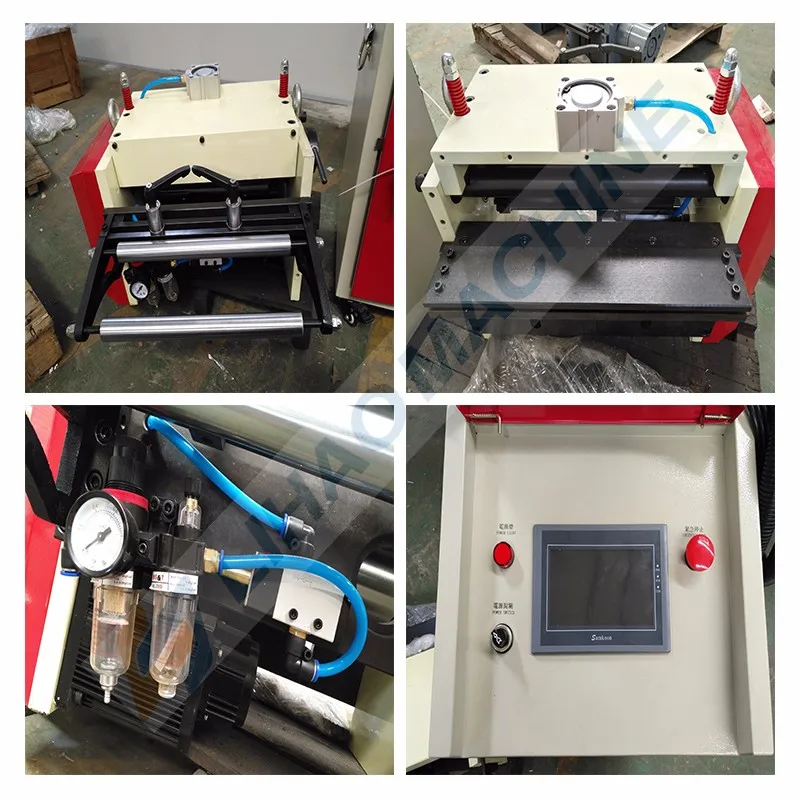

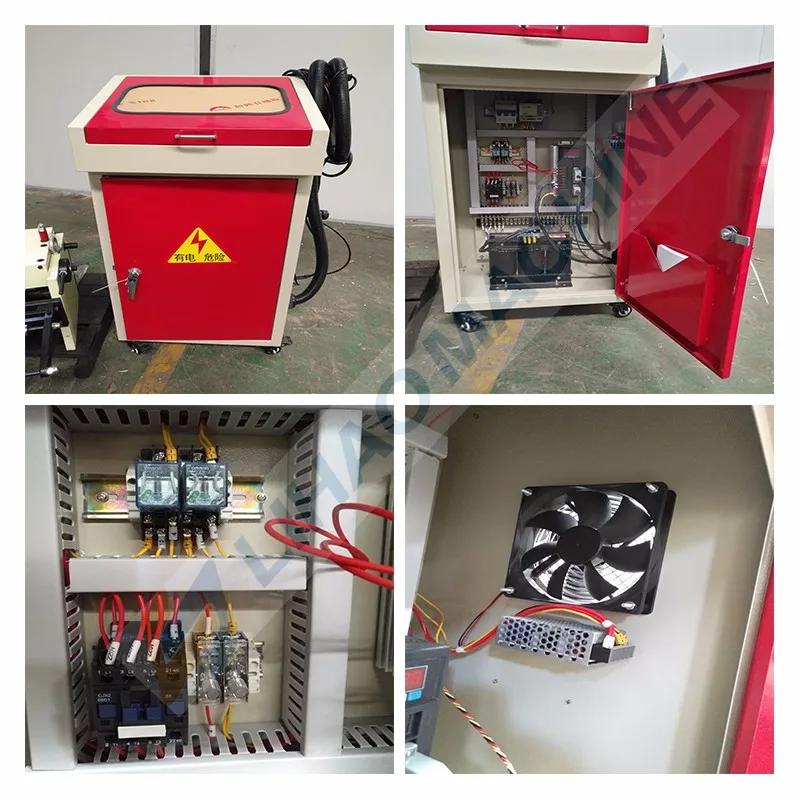

Detailed Images
Certifications
Recommend Products
Packing & Delivery
Packaging
Weight
Min. 100kg




Packaging Details


The normal package is plywood case for export.
For full container goods, if machine is too large to packaged in case, we will use pe film for packing or pack it according to customers special request.
