Metal Sheet Strip Coil Decoiler Straightener NC Servo Rolling Feeding Machine For Power Press

FOB Reference Price:Get Latest Price
$35,000.00 - $70,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
NCLF-800B NCLF-1000B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Energy & Mining
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
After-sales Service Provided:
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Warranty:
1 Year
function:
feed metal strip to press machine
Usage:
metal strip coil in roll form
metal sheet strip thickness:
2-8mm
uncoiler/decoiler:
decoil metal strip coil
straightener:
flatten metal strip
feeder:
clamp and feed metal strip forward
feeder motor:
Yaskawa servo motor
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood box, plywood pallet, etc.
Port
SHENZHEN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

Product Application

1. This big machine combines uncoiler function, straightener function, NC servo roll feeder function together, so as 3 in 1feeder.
2. It can decoil suitable metal strip coil, then straighten the metal strip, then feed the metal strip to press machine automatically, for automatic stamping processing.

 Main Features


1. Flexible operation:
All the functions of the feeder are centered on the PLC and a hand-held knob. The operator can implement all the motion functions of the equipment at one location. This can save time.
2. High efficiency, strong security:
To maximize the use of mechanical action instead of manual operation.Reduce unnecessary auxiliary time, improve work efficiency. Powerful auxiliary function, so that the operator can stay away from the uncoiler。
3. Easy to operate:
According to user needs, you can switch between the press or the device to control. Improve the equipment to adapt to the scope for the customer to save costs.
4. Area is reasonable:
Li Hao NCLF series is the powerful also have the most reasonable size in the industry, we can save space occupancy costs for the customers.
5. Control system compatibility:
NCLF series using a full set of Japan's Mitsubishi control system, and the standard system at home and abroad compatible, users do not need to worry about data conversion and other issues can be directly used to operate.
6. The design is harmonious and reasonable:
Li Hao’s NCLF series is the first on the industry to introduce industrial design into product. Li Hao and the most well-known industrial design cooperation, while ensuring the basic performance of equipment at the same time, maximize the visibility of the equipment to improve the operational comfort.
Basic parameters
Name
Uncoiler, straightener, NC servo roll feeder, 3 in 1
(including hydraulic expansion, coil car, material cutting device)
Model
NCLF-600B
NCLF-800B
NCLF-1000B
Width of the material
50mm~600mm
50mm~800mm
50mm~1000mm
Thickness of the material
2.0mm~8.0mm
Straightening capacity (σs≤250MPa)
600×4.0mm
450×5.0mm
350×6.0mm
300×7.0mm
220×7.5mm
180×8.0mm


800×3.2mm
600×4.0mm
450×5.0mm
350×6.0mm
300×7.0mm
220×7.5mm
180×8.0mm
1000×2.0mm
800×3.2mm
700×3.7mm
450×5.0mm
350×6.0mm
300×7.0mm
220×7.5mm
180×8.0mm
Inside coil diameter
Φ460mm~Φ530mm
Max.coil outside diameter
Φ1400mm
Max.coil weight
7T
Straightening roll diameter
Φ100mm×7(up4/down3)
Material of straightening roll
GCr15(HRC58-62)
Feeding roll diameter
Φ120mm
Decoiler power
5.5Kw
Straightening power
11Kw
15Kw
Feeding speed
0~20m/min
Feeding precision
<±0.2mm
Other configuration
Straightening adjustment type
Eccentric shaft adjust by worm and gear.
Load material type
coil car
Feed discharging line adjustment method
Electric
Press material for decoiling part
By pneumatic
Feeding guide arc drive mode
By hydraulic
Block arm drive mode
Manual
Front block arm opening and closing method
Pneumatic
Feeding device movement mode
Two-way screw hands
Head of material flattening device
Hydraulic
Operation control mode
Main control cabinet + action unit remote control switch
Tail of material detector
Exist
Purchased parts brand
Main bearing
HRB,ZWZ
Servo motor
Japan YASKAWA(SGMGH)
Man-machine interface
Taiwan WEINVIEW(Colored)
Common motor
Taiwan Wanxin
Frequency changer
Taiwan DELTA
Pneumatic unit
Taiwan Airtac
PLC
Japan Mitsubishi
Relay
Japan Omron
Hydraulic fittings
Beijing HUADE
Other technical data
Pneumatic pressure
0.5Mpa
Hydraulic pressure
7Mpa
voltage
3phase 380V
Feeding line height
1050mm-1250mm
Input material type
From down to up
Standard direction
From left to right
Equipment length(Not included outlet shelf)
≈4.5m
Detailed Images

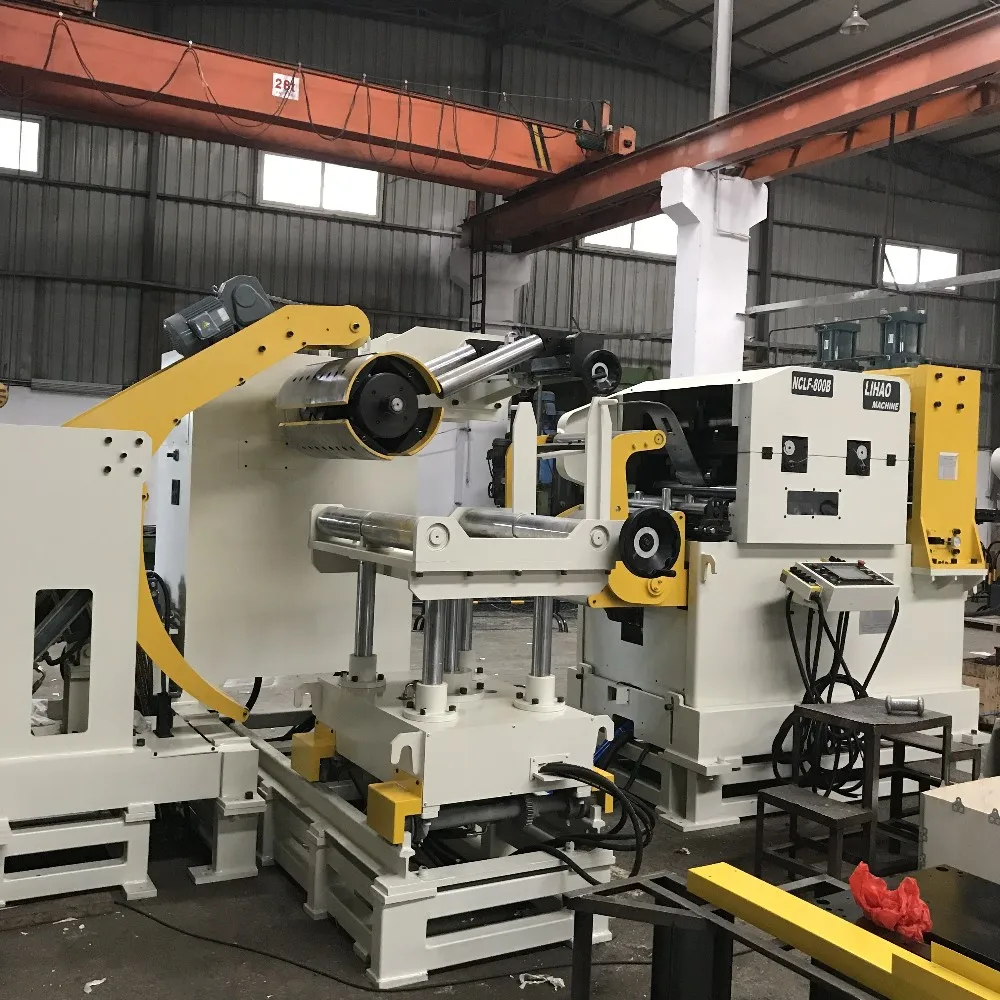

3 In 1 Feeder

Uncoiler/decoiler, straightener, NC servo roll feeder, as 3 in 1.
Decoiler straightener feeder, 3 in 1.
Uncoiler straightener feeder, 3 in 1.
Material cutting device is included (yellow color, at right side).

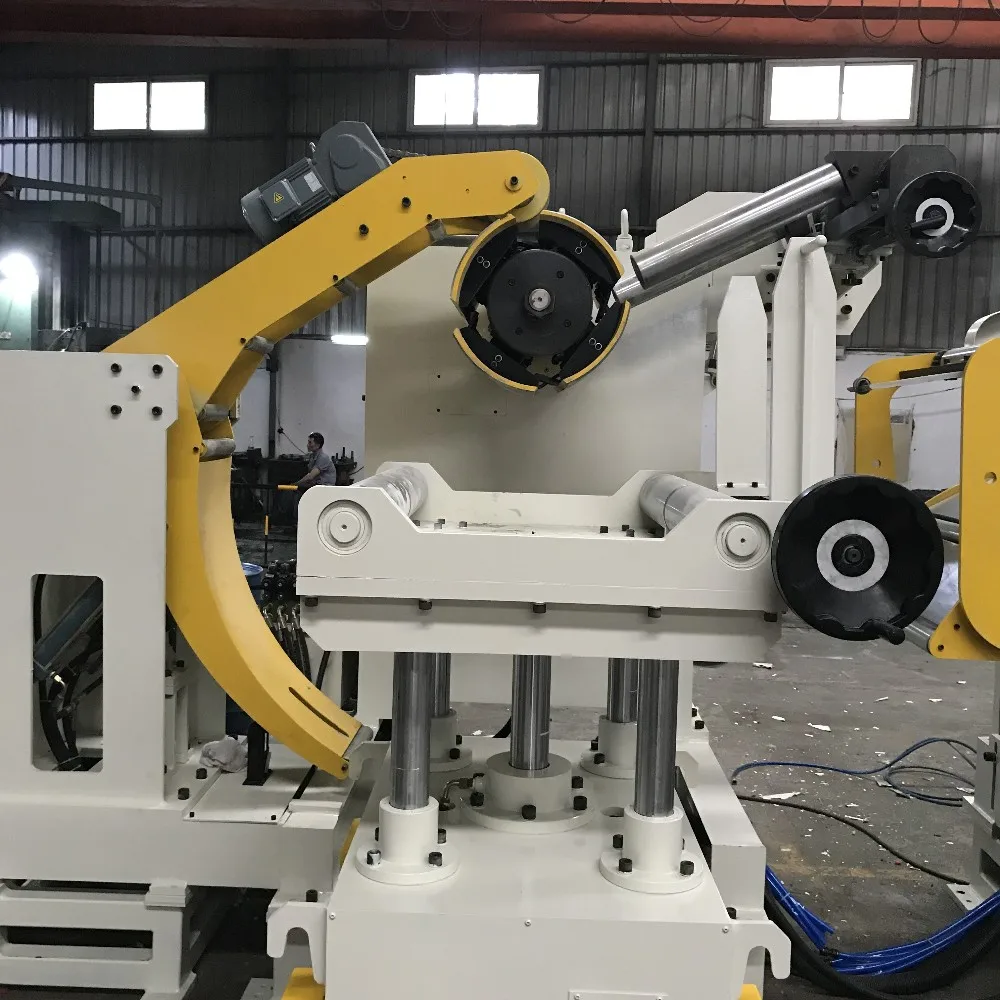

Uncoiler

Round mandrel for uncoiler, with hydraulic expansion.

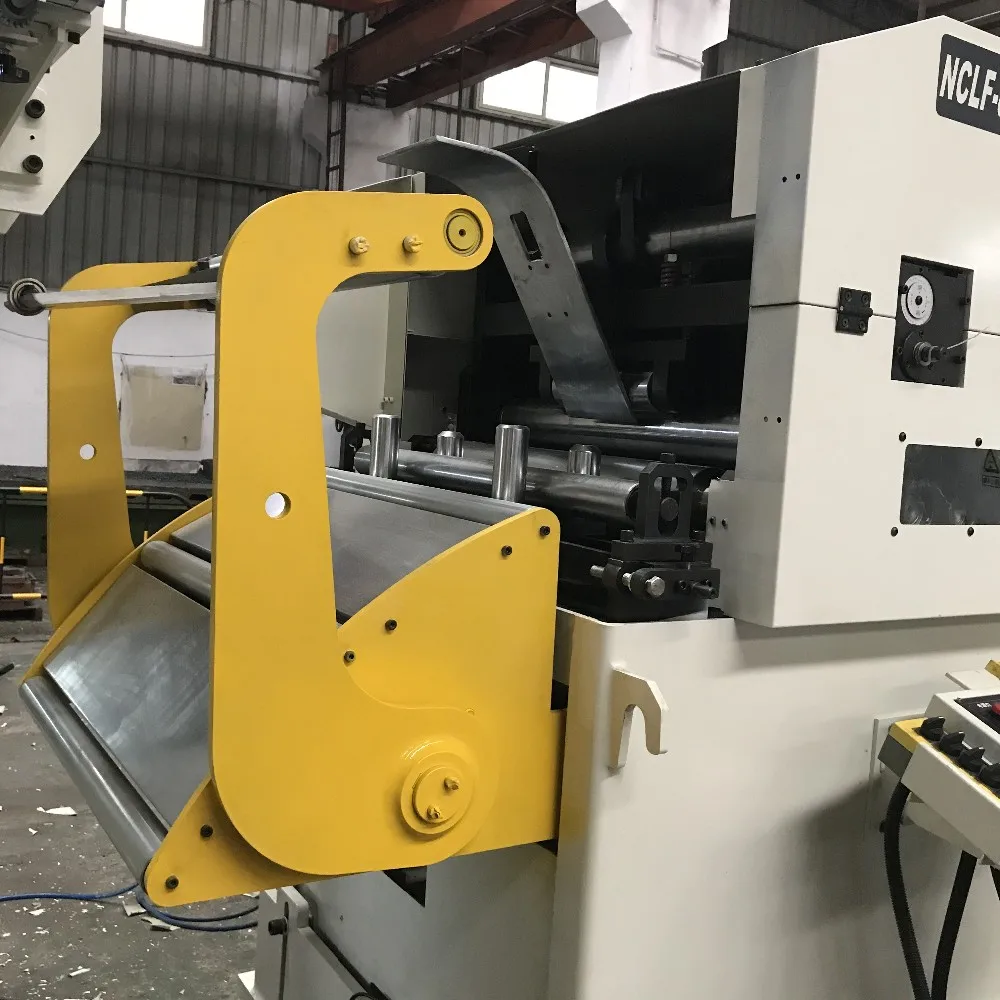

Arm shape perssing device.
Retailer device, for coil at uncoiler.
Supporting device, for strip moving to straightener entrance.
Retainer can keep coil material at center line position.

Good design, for thick sheet metal.

Strong coil car

For loading coil to uncoiler mandrel automatically.

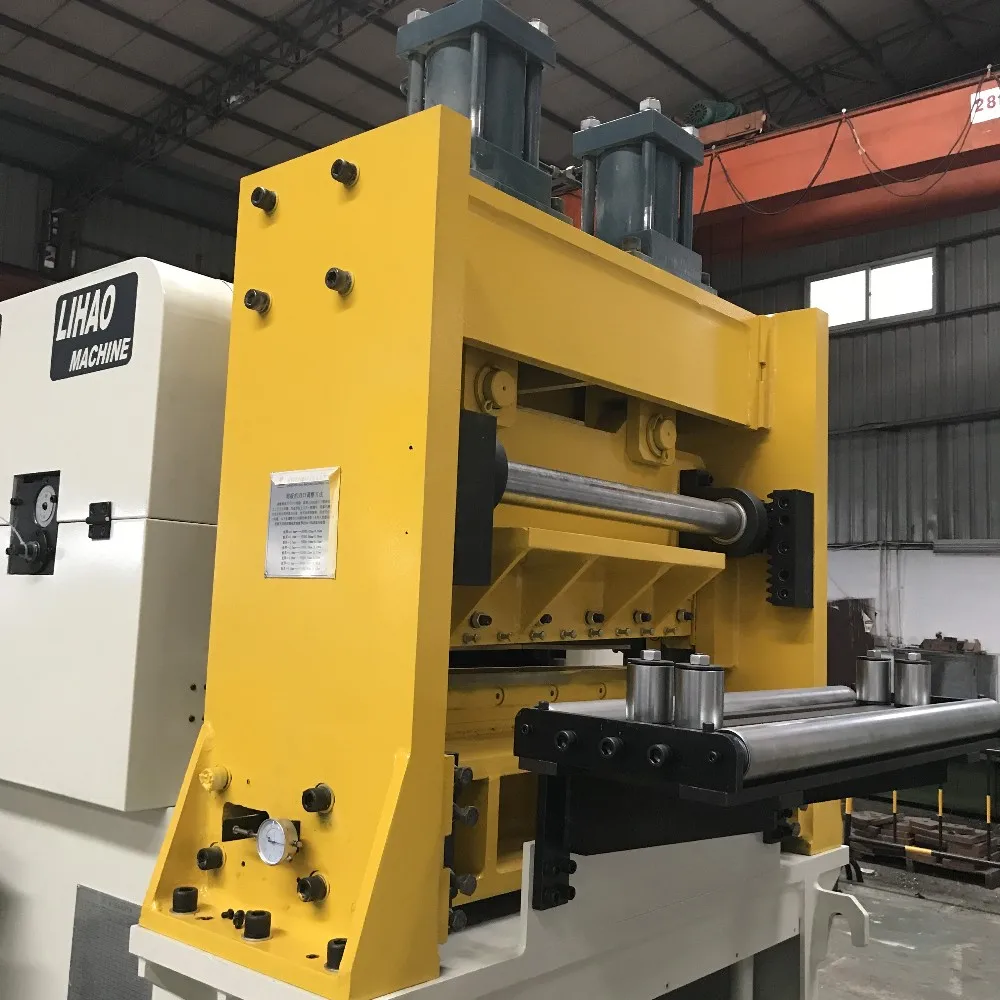

Guiding device for straigntener and feeder

While uncoiler decoil coil material, so material can get into entrance of feeder easily.
Guiding device, let material at center line position.
Good design, safe and easy to use.

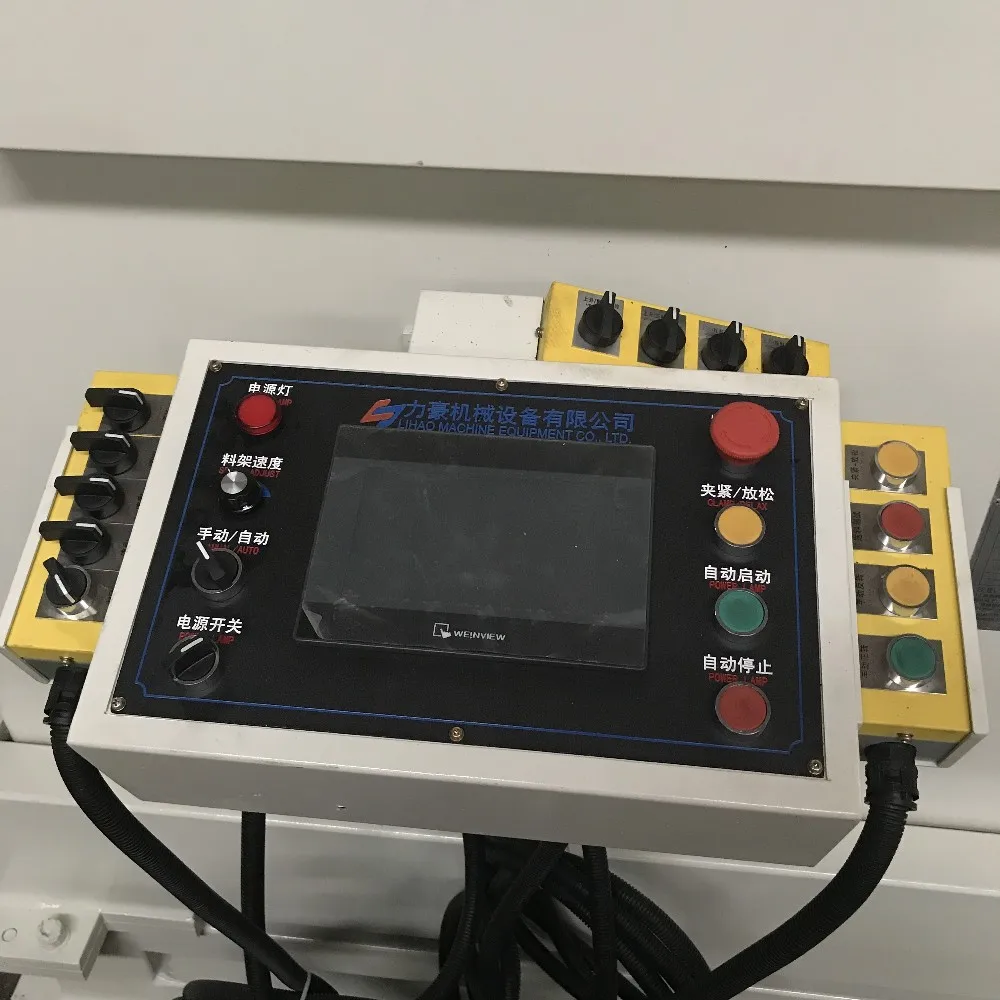

Electrical cabinet, HMI controller

Touch screen and buttons.
User touch numbers and input feeding length numbers.
User touch order menu for controlling the machine.

Hydraulic cutting device

It can cut sheet metal automatically.

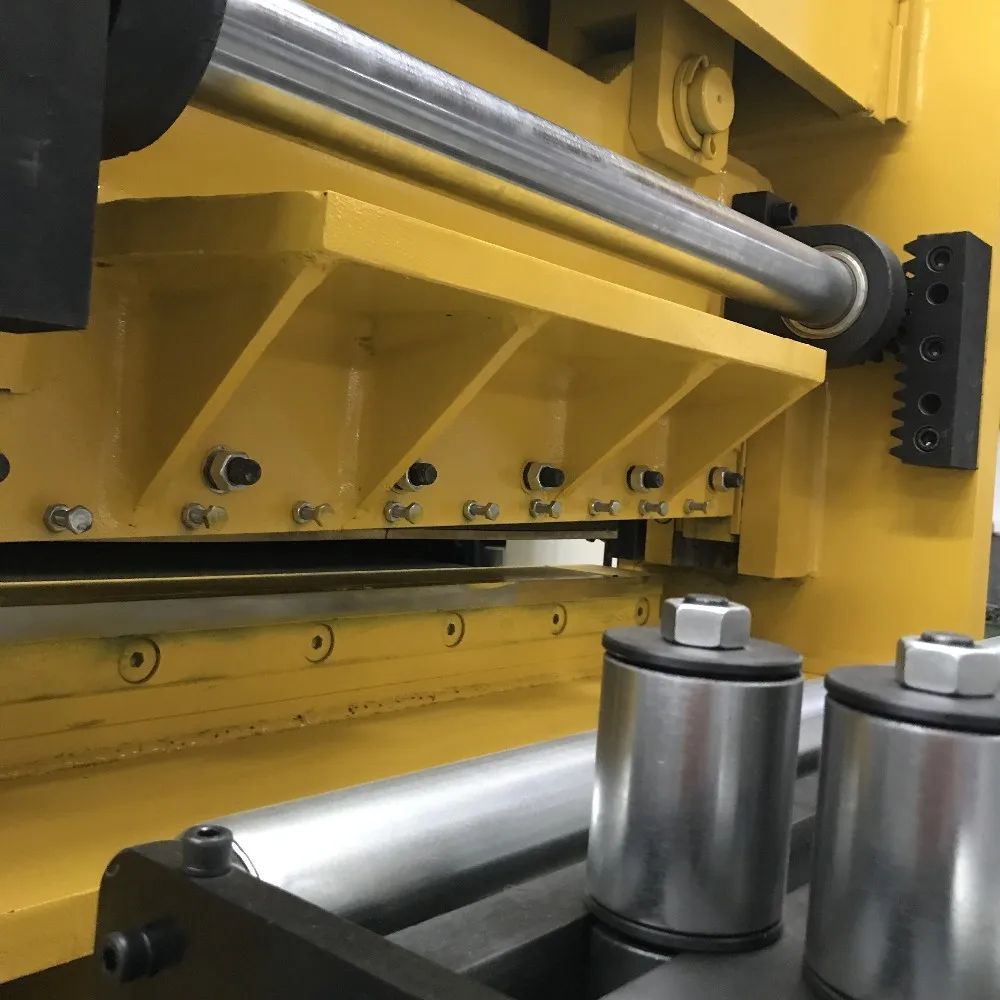

Blades of cutting device

Their position can be adjusted, as per your sheet metal thickness.

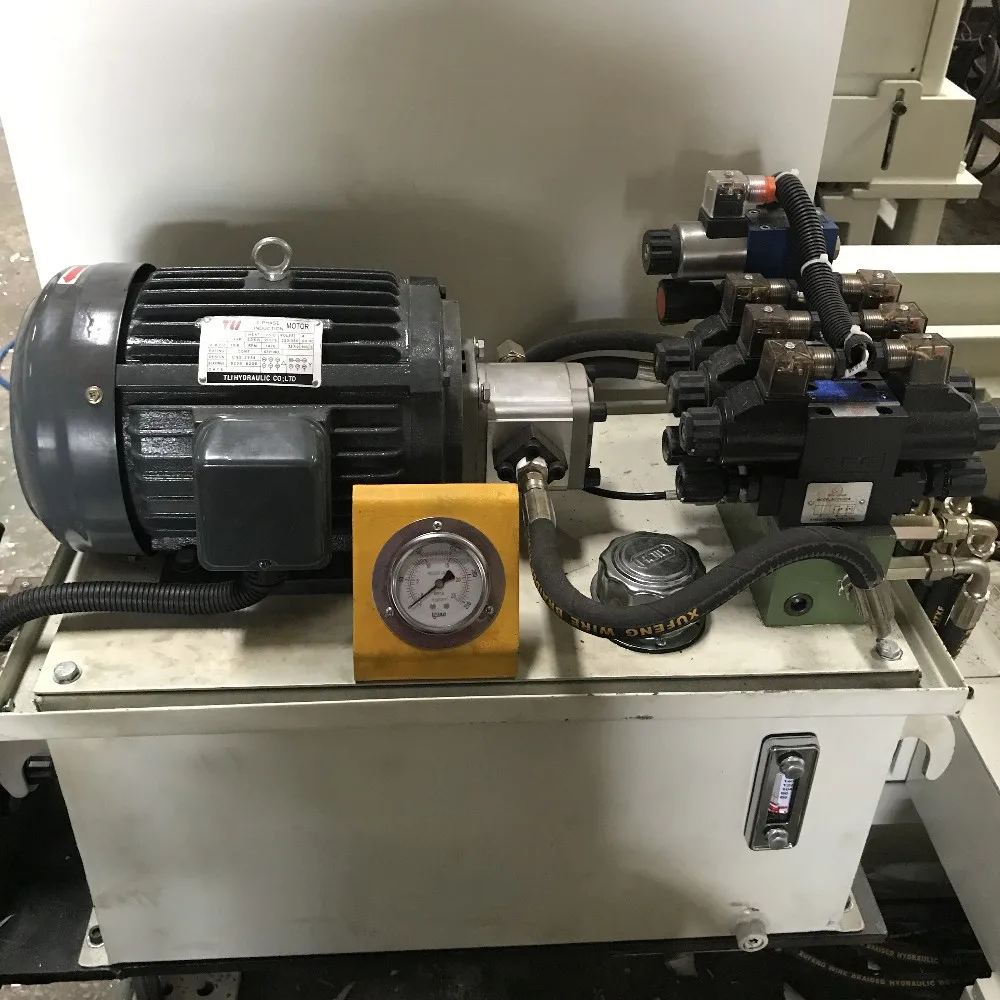

Hydraulic pump

Powerful pump, each to use.
