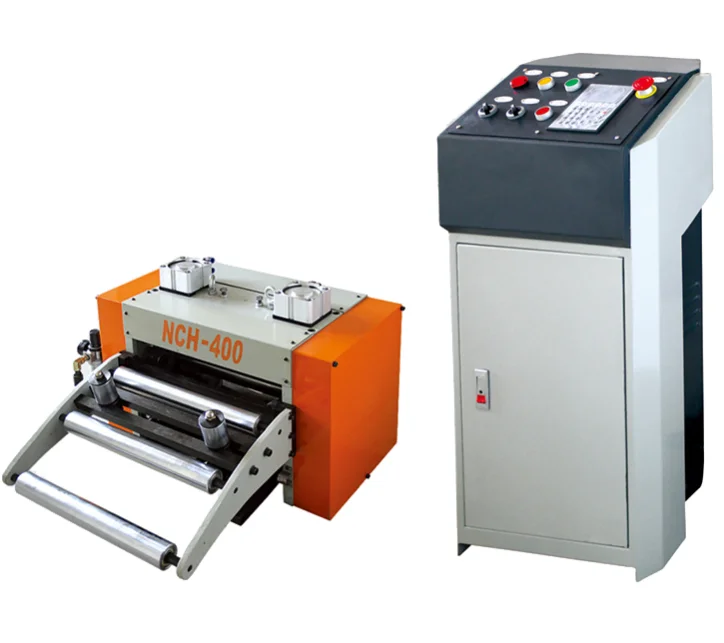

NC servo roll feeder machine for power press

FOB Reference Price:Get Latest Price
$2,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
Model Number:
NCH
Certificate:
CE ISO SGS
Main motor:
Yaskawa servo motor
PLC:
Mitsubishi PLC
HMI:
Taiwan Veinview
Bearing:
Japan NSK
Relay:
Omron
Electrical component:
Schneider
Feeding accuracy:
±0.2mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month roller feeder
Packaging & Delivery
Packaging Details
in wooden case
Port
shenzhen
Lead Time :
15 work days
Product Description

Product Application

1. This good machine can clamp sheet metal and feed the sheet metal to press machine, for automatic stamping processing.
2. It drives by servo motor.

Main Features

1. It can feed material for various thickness and feeding stroke length.
2. It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
3. With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is 0.1mm-9999.99mm.
4. It adopts pneumatic cylinder releasing method, with little malfunction

Model
NCH-200
NCH-300
NCH-400
NCH-500
Max. Feeding width (mm)
200
300
400
500
Max. Feeding length (mm)
9999.99
9999.99
9999.99
9999.99
Material Thickness (mm)
0.5-6.0
0.5-6.0
0.5-6.0
0.5-6.0
Feeding line height (mm)
100-280
100-280
100-280
100-280
Max. Feeding speed (m/min)
20
20
20
20
Releasing Method
pneumatic
pneumatic
pneumatic
pneumatic
Electrical power
3 Phase, AC380V±10%,50HZ ±2%  (It can be changed according to your requirement)
Pneumatic pressure
0.5Mpa
Model
NCH-300
NCH-400
NCH-500
NCH-600
NCH-700
NCH-800

Thickness × Width (mm)
4.0
300
400
500
600
700
800
5.0
220
200
350
550
550
550
6.0
100
100
200
400
400
400
Certifications
Detailed Images

Drive Power: Yaskawa servo motor

Name: Servo motor

Brand: Japan Yaskawa

Feeder machine driven by high quality and brushless servo motor, shorten the time of feeding length adjust and testing effectively.
Motor is built- in installed to avoid the damages may caused during transportation and loading

Numerical control: Mitsubishi PLC

Name: PLC
Brand: Japan Mitsubishi

Feeder machine controlled by PLC with high precision.

Electrical component:

Schneider Contactor

Name: Contactor
Brand: France Schneider


Omron Relay

Name: Relay
Brand: Japan Omron



SHAKO Solenoid Valve

Name: Solenoid Valve
Brand: FESTO
Original: Taiwan SHAKO

Operation panel:


HMI: Taiwan Veinview or YK HMI


Language: Chinese & English


Feeding Roller


Packing & Delivery
Our Service
