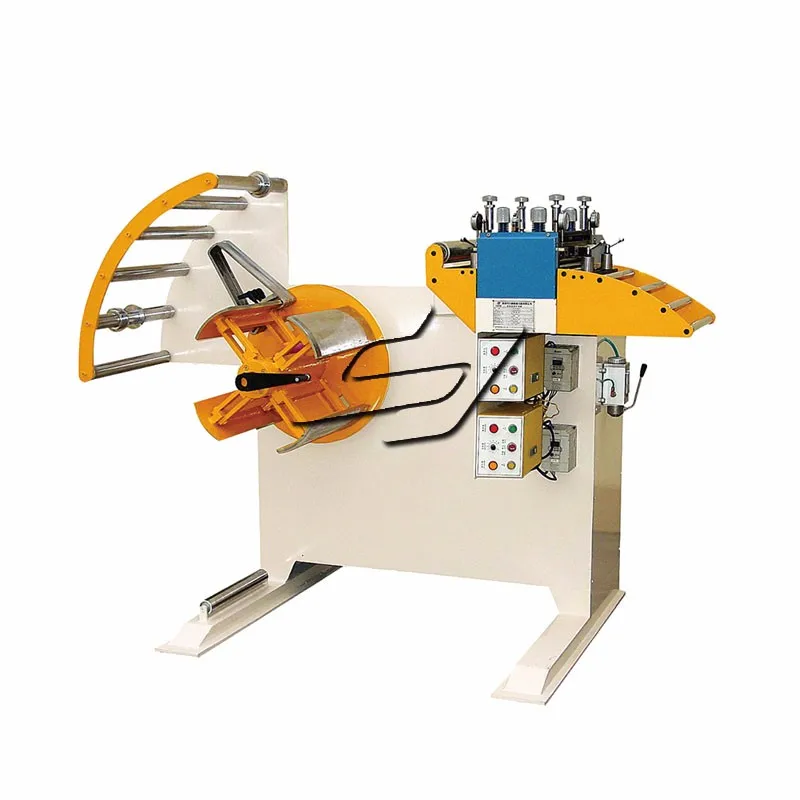

sheet metal decoiler flattening machine 2 in 1

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Uncoiling Machine
Use:
coil
Place of Origin:
Guangdong, China
Brand Name:
LIHAO MACHINE
Model Number:
GO-200B
Voltage:
380v
Power(W):
7.5kw
Dimension(L*W*H):
100*100*100
Weight:
500kg
Certification:
CE
include:
uncoiler function,straightener function
uncoiler:
uncoil metal strip coil
straightener:
straighten metal strip
Warranty:
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
In wooden case
Port
SHENZHEN
Lead Time :
15 work days
Product Description

Product Application

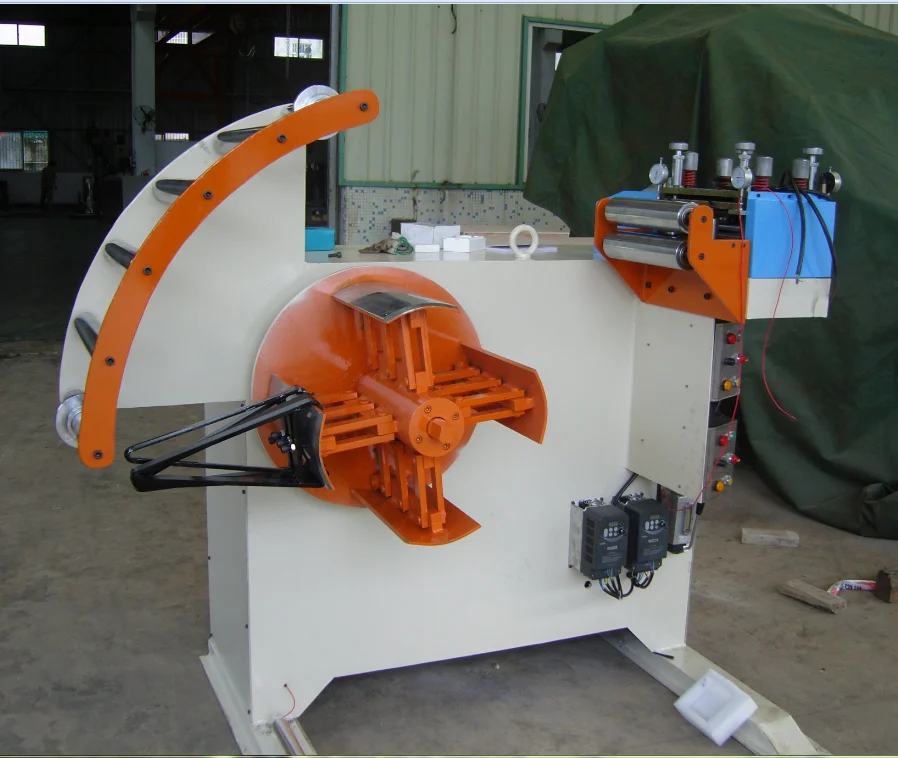

sheet metal decoiler flattening machine 2 in 1, is for metal sheet coil uncoiling and straightening.

Uncoiler straightener 2 in1 machine ,uncoiling straightening metal strip,work with feeder machine,press machine for automatic punching production

Main Features

1. Uncoiler and straightener two in one style can save installation speace, lower transition procedure in precision material straightening process and play machine usability maximally.reliability of the whole machine in precision are enhanced.
2. The uncoiler and straightener are controlled separately by independent electrictiy boxes, which adopt freguency converters,enable each action sooth and protect machine effectively so that it can not deform due to all kinds of external force during running process.
3. Straightener adopts and cardan joint and gear transmission,which can effectively pre vent upper gears stop the materials.
4.The straighenening gear adopts the dial indicator and be able to find out the leveling up point rapidly.
5.The additional back pressure wheel enables the straightening result much better.
6.The additionallubrication system prolonged the machine life span.Changing or design according to the customers need for the uncoiler load and straightening paramenteters is possible, and the power or powerless material pressing arm or oilpressure expansion can be supplied according to the customer needs.

Model
G0-200B
GO-300B
GO-400B
GO-500B
GO-600B
Max width
mm
200
300
400
500
600
Thickness
mm
0.1-0.8mm
Max weight
kg
800kg
1000kg
1500kg
1500kg
2000kg
Inner diameter
mm
450-530mm
Outer diameter
mm
1200mm
Straightener motor
HP
1/2(HP)
1(HP)
2(HP)
2(HP)
3(HP)
Uncoiler motor
HP
1(HP)
2(HP)
2(HP)
2(HP)
3(HP)
Straightener roller
mm
Φ20x9 up/ Φ20x10 down (full drive)
Straighening adjusting
4 point adjusting
Straightening speed
m/min
0-15m/min
Expansion style
Manual
Induction style
Induction table style
Certifications
Detailed Images

Machine Parts

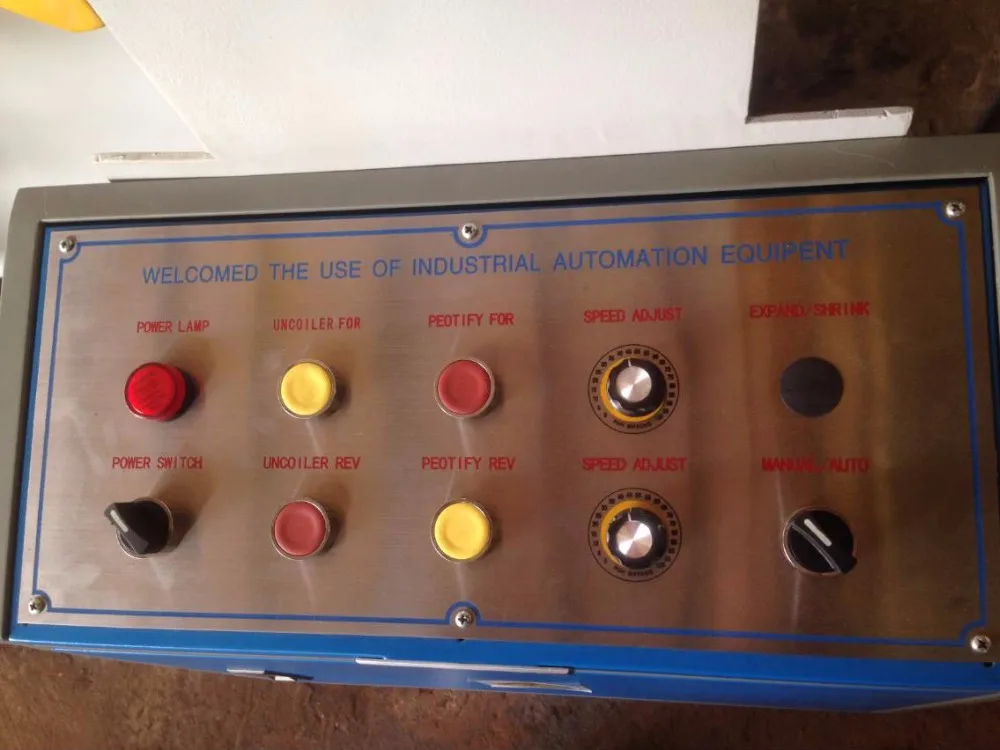

Name: electric box

Brand: Lihao

Original: China


Main Features

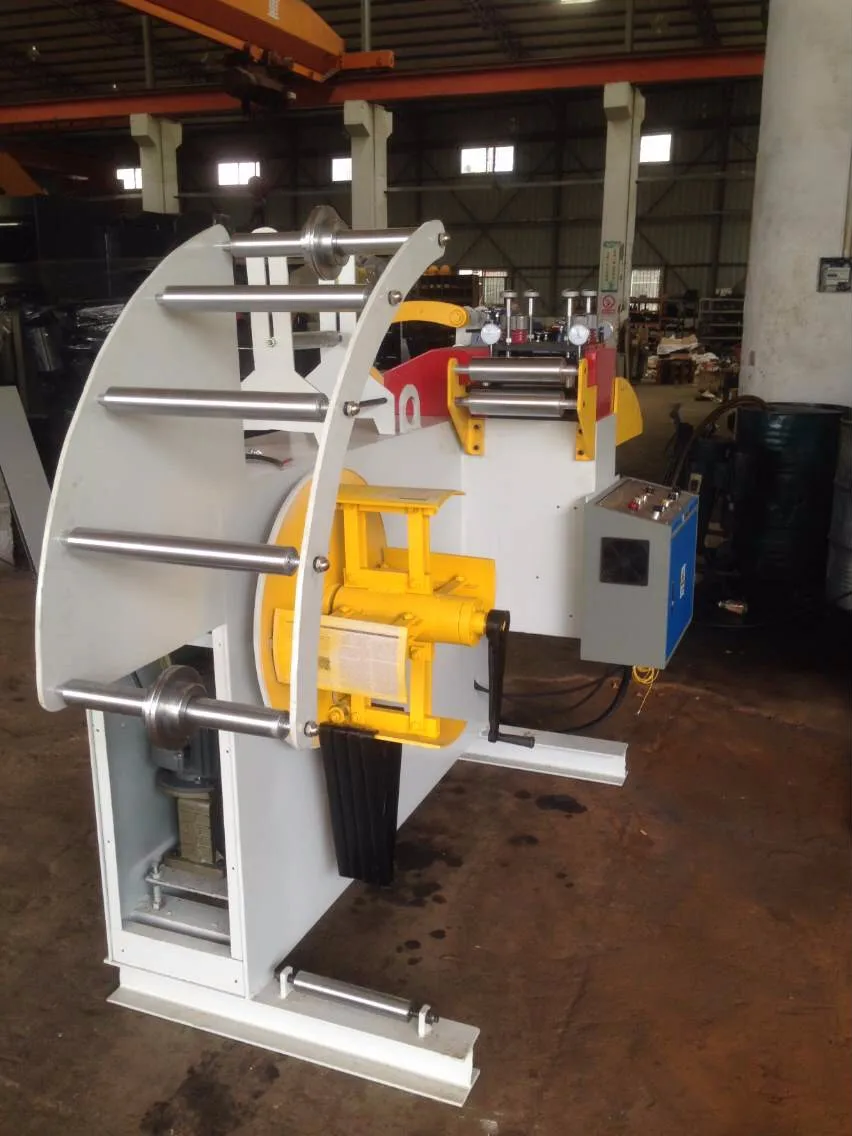

Name: Uncoiler pat
Brand: Lihao
Original: China
Loading metal coil ready for uncoiling

Machine Parts

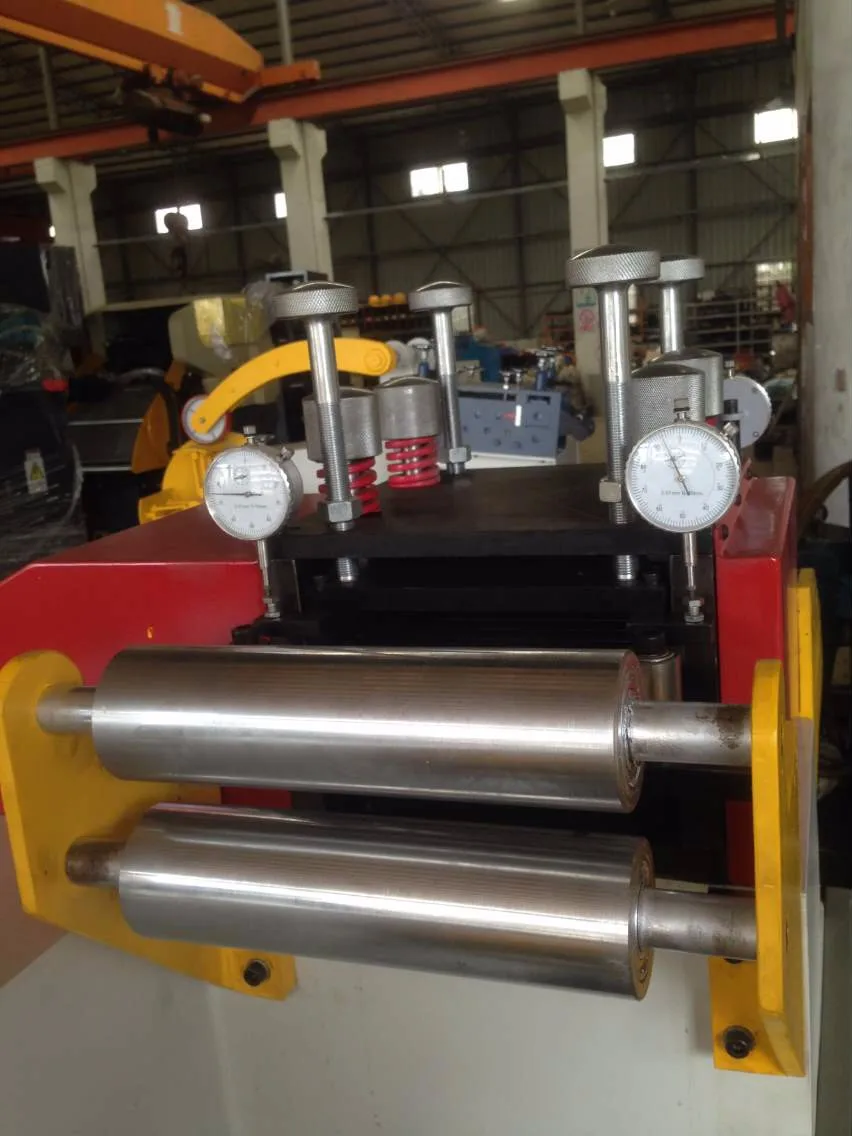

Name: straightener part
Brand: Lihao
Original: China
Adopt cardan joint and gear transmission,

with dial indicator and be able to find out the leveling up point rapidly

Leading roller
